Technical Documents
Specifications
Brand
STMicroelectronicsChannel Type
Type N
Product Type
MOSFET
Maximum Continuous Drain Current Id
25A
Maximum Drain Source Voltage Vds
100V
Series
STripFET H7

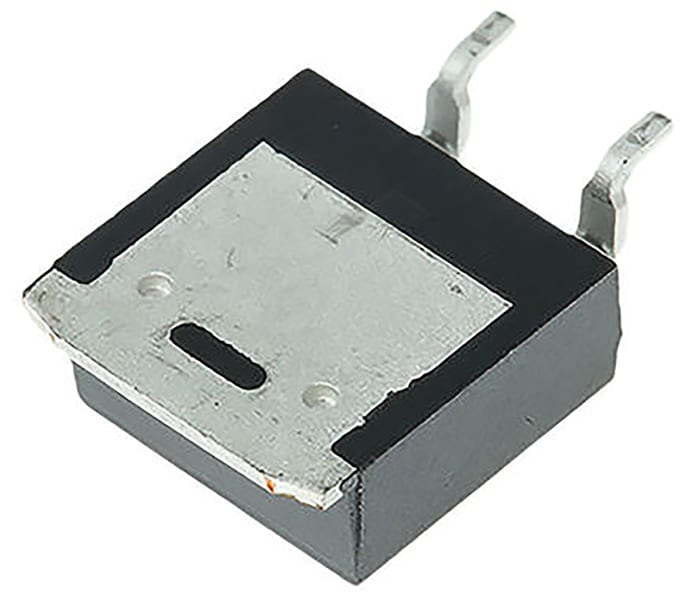

Package Type
TO-252
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
35mΩ
Channel Mode
Enhancement
Forward Voltage Vf
1.1V
Maximum Power Dissipation Pd
40W
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
14nC
Maximum Gate Source Voltage Vgs
20V
Maximum Operating Temperature
175°C
Standards/Approvals
No
Width
6.2mm
Height
2.4mm
Length
6.6mm
Automotive Standard
No
Product Details
STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
63.20 MOP
12.634 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
63.20 MOP
12.634 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 620 | 12.634 MOP | 63.17 MOP |
| 625 - 1245 | 12.366 MOP | 61.83 MOP |
| 1250+ | 12.119 MOP | 60.59 MOP |
