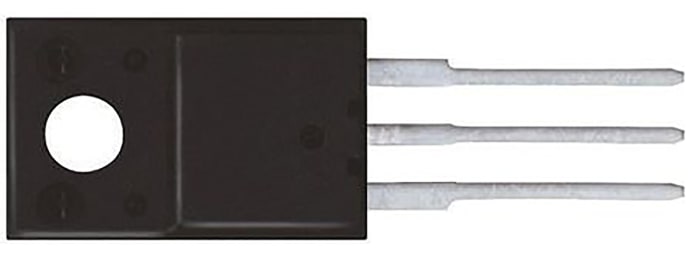

STMicroelectronics MDmesh M2 Type N-Channel Power MOSFET, 13 A, 650 V Enhancement, 3-Pin TO-220FP
Technical Document
Specifications
Brand
STMicroelectronicsChannel Type
Type N
Product Type
Power MOSFET
Maximum Continuous Drain Current Id
13A
Maximum Drain Source Voltage Vds
650V
Package Type
TO-220FP
Series
MDmesh M2
Mount Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance Rds
0.28Ω
Channel Mode
Enhancement
Maximum Power Dissipation Pd
25W
Maximum Gate Source Voltage Vgs
±25 V
Forward Voltage Vf
1.6V
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
21.5nC
Maximum Operating Temperature
150°C
Width
4.6 mm
Height
16.4mm
Standards/Approvals
No
Length
10.4mm
Automotive Standard
No
Product details
N-channel MDmesh™ M2 Series, STMicroelectronics
A range of high-voltage power MOSFETs from STMicroelecronics. With their low gate charge and excellent output capacitance characteristics, the MDmesh M2 series are perfect for use in resonant-type switching supplies (LLC converters).
MOSFET Transistors, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
93.40 MOP
18.673 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
93.40 MOP
18.673 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 10 | 18.673 MOP | 93.36 MOP |
| 15 - 20 | 18.199 MOP | 90.99 MOP |
| 25+ | 17.931 MOP | 89.65 MOP |
