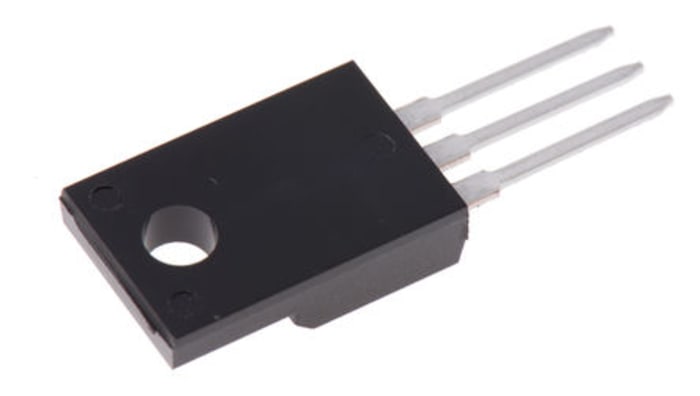

STMicroelectronics MDmesh Type N-Channel MOSFET, 20 A, 600 V Enhancement, 3-Pin TO-220 STF26NM60N

RS Stock No.: 761-2792Brand: STMicroelectronicsManufacturers Part No.: STF26NM60N
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

20A

Maximum Drain Source Voltage Vds

600V

Package Type

TO-220

Series

MDmesh

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

165mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

35W

Maximum Gate Source Voltage Vgs

25 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

60nC

Forward Voltage Vf

1.3V

Maximum Operating Temperature

150°C

Width

4.6 mm

Height

16.4mm

Length

10.4mm

Standards/Approvals

No

Automotive Standard

No

Product details

N-Channel MDmesh™, 600V/650V, STMicroelectronics

MOSFET Transistors, STMicroelectronics
