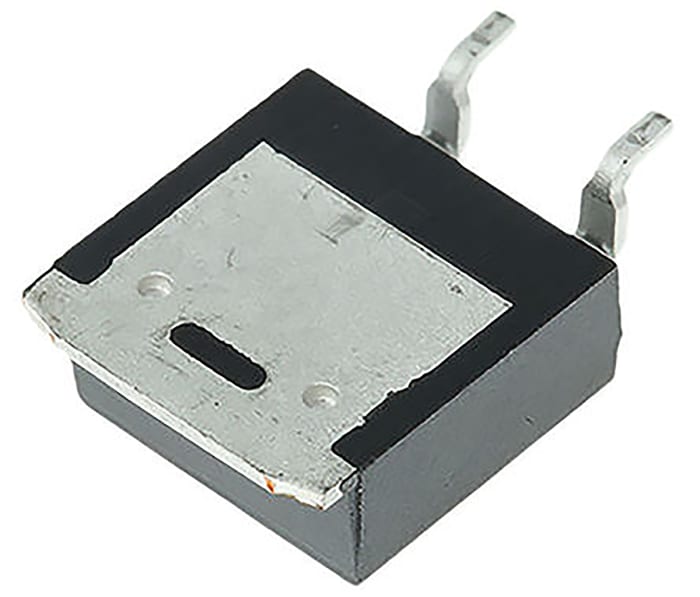

STMicroelectronics, Type N-Channel Trench Gate Field Stop IGBT, 10 A 600 V, 3-Pin TO-252, Surface

Brand

Maximum Continuous Collector Current Ic

10A

Product Type

Trench Gate Field Stop IGBT

Maximum Collector Emitter Voltage Vceo

600V

Maximum Power Dissipation Pd

88W

Package Type

TO-252

Mount Type

Surface

Channel Type

Type N

Pin Count

3

Maximum Gate Emitter Voltage VGEO

±20 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.95V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Length

6.6mm

Height

2.4mm

Standards/Approvals

RoHS

Series

H

Energy Rating

221mJ

Automotive Standard

No

Country of Origin

China
