Technical Documents
Specifications
Brand

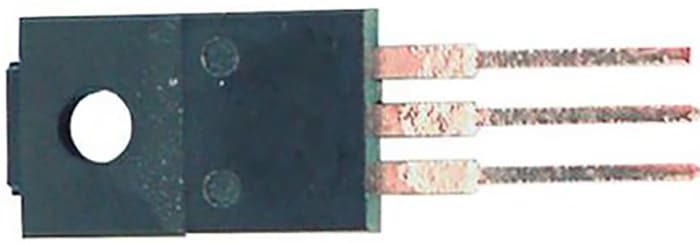

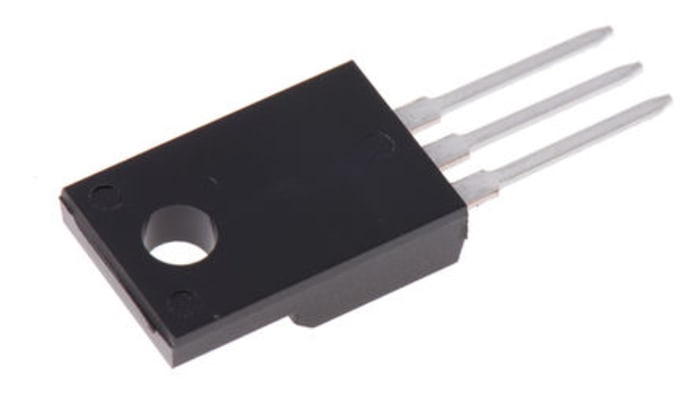

STMicroelectronicsMaximum Continuous Collector Current Ic
40A
Product Type
IGBT
Maximum Collector Emitter Voltage Vceo
600V
Maximum Power Dissipation Pd
167W
Package Type
TO-220
Mount Type
Through Hole
Channel Type
Type N
Pin Count
3
Switching Speed
1MHz
Maximum Gate Emitter Voltage VGEO
20 V
Maximum Collector Emitter Saturation Voltage VceSAT
2V
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
175°C
Length
10.4mm
Height
16.4mm
Standards/Approvals
No
Series
Trench Gate Field Stop
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
121.00 MOP
24.196 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
5
121.00 MOP
24.196 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
5
| quantity | Unit price | Per Tube |
|---|---|---|
| 5 - 10 | 24.196 MOP | 120.98 MOP |
| 15 - 20 | 23.578 MOP | 117.89 MOP |
| 25+ | 23.248 MOP | 116.24 MOP |
