Technical Documents
Specifications
Brand
STMicroelectronicsMaximum Continuous Collector Current Ic
60A
Product Type
IGBT
Maximum Collector Emitter Voltage Vceo
600V
Maximum Power Dissipation Pd
258W
Package Type

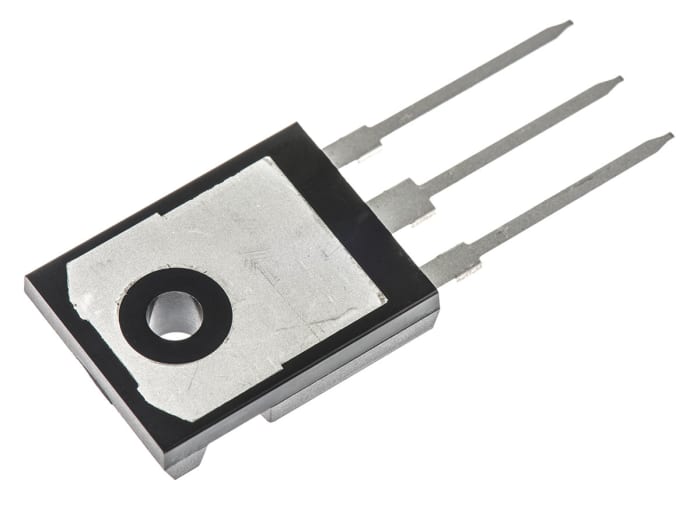

TO-247
Mount Type
Through Hole
Channel Type
Type N
Pin Count
3
Switching Speed
1MHz
Maximum Gate Emitter Voltage VGEO
±20 V
Maximum Collector Emitter Saturation Voltage VceSAT
2.3V
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
175°C
Length
15.75mm
Height
20.15mm
Standards/Approvals
RoHS
Series
V
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
145.40 MOP
29.081 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
5
145.40 MOP
29.081 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
5
