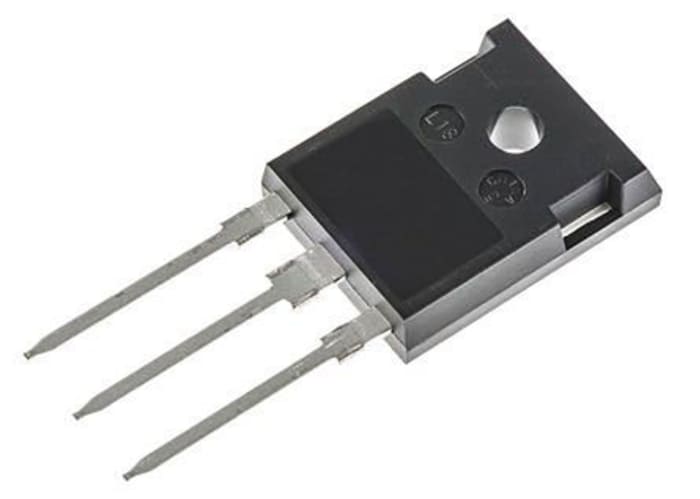

STMicroelectronics STGWA30H65DFB2, Type N-Channel IGBT, 50 A 650 V, 3-Pin TO-247, Through Hole

RS Stock No.: 204-9877Brand: STMicroelectronicsManufacturers Part No.: STGWA30H65DFB2
brand-logo
View all in IGBTs

Technical Document

Specifications

Brand

STMicroelectronics

Maximum Continuous Collector Current Ic

50A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

167W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Switching Speed

1MHz

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

2.1V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Length

15.9mm

Height

5.1mm

Standards/Approvals

RoHS

Series

STG

Automotive Standard

No

Country of Origin

China
