Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
90A
Maximum Drain Source Voltage Vds
60V
Package Type
PowerFLAT
Series
STripFET F7
Mount Type
Surface
Pin Count
8
Maximum Drain Source Resistance Rds
5.4mΩ
Channel Mode
Enhancement
Maximum Power Dissipation Pd
94W
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
25nC
Forward Voltage Vf
1.2V
Maximum Operating Temperature
175°C
Height
0.95mm
Length
5.4mm
Standards/Approvals
No
Automotive Standard
No
Country of Origin
China

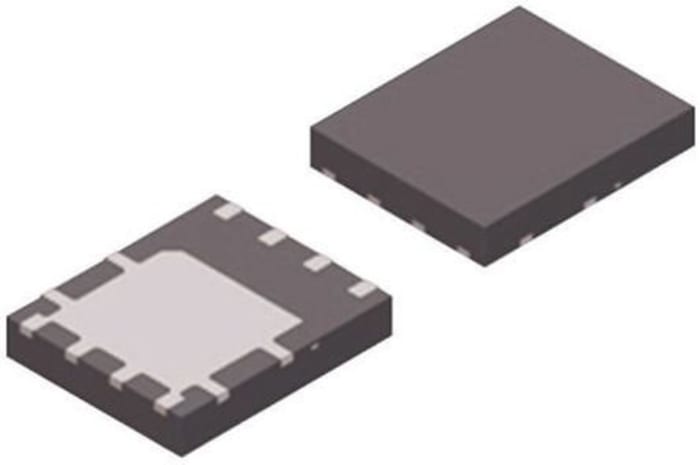

Product Details
The STMicroelectronics STripFET™ F7 series of low-voltage MOSFETs have lower device on-state resistance, with reduced internal capacitance and gate charge for Faster and more efficient switching.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
114.70 MOP
11.469 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
10
114.70 MOP
11.469 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
10
| quantity | Unit price | Per Reel |
|---|---|---|
| 10 - 740 | 11.469 MOP | 114.70 MOP |
| 750 - 1490 | 11.171 MOP | 111.71 MOP |
| 1500+ | 11.006 MOP | 110.06 MOP |
