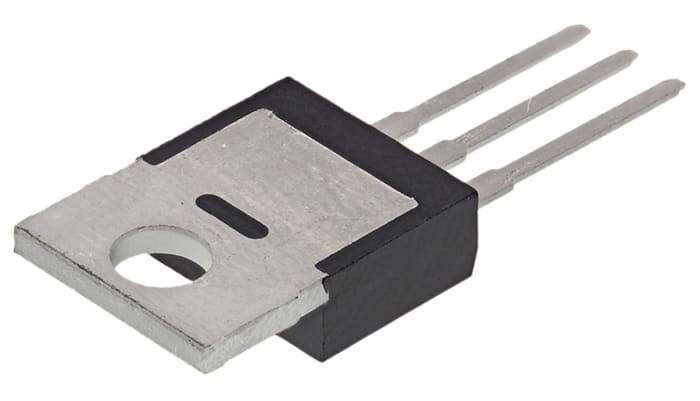

STMicroelectronics SuperMESH Type N-Channel Zener-Protected SuperMESH MOSFET, 10 A, 600 V Enhancement, 3-Pin TO-220

RS Stock No.: 485-7412Brand: STMicroelectronicsManufacturers Part No.: STP10NK60Z
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Zener-Protected SuperMESH MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

10A

Maximum Drain Source Voltage Vds

600V

Package Type

TO-220

Series

SuperMESH

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

0.75Ω

Channel Mode

Enhancement

Maximum Power Dissipation Pd

156W

Maximum Gate Source Voltage Vgs

±30 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

5nC

Forward Voltage Vf

1.6V

Maximum Operating Temperature

150°C

Width

4.6 mm

Height

9.15mm

Length

10.4mm

Standards/Approvals

JESD97, ECOPACK

Automotive Standard

No
