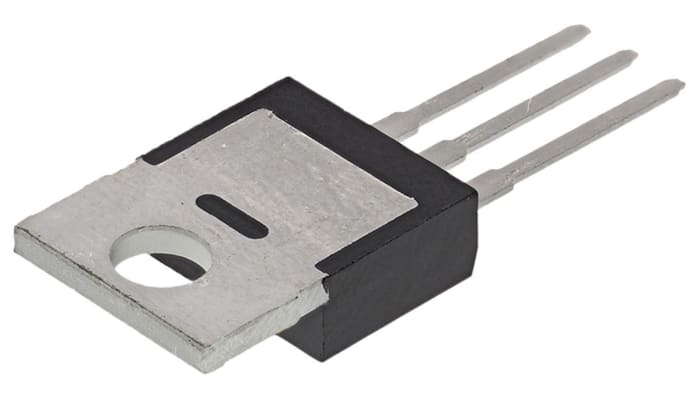

STMicroelectronics STripFET Type N-Channel MOSFET, 18 A, 200 V Enhancement, 3-Pin TO-220 STP20NF20
Technical Document
Specifications
Brand
STMicroelectronicsChannel Type
Type N
Product Type
MOSFET
Maximum Continuous Drain Current Id
18A
Maximum Drain Source Voltage Vds
200V
Package Type
TO-220
Series
STripFET
Mount Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance Rds
125mΩ
Channel Mode
Enhancement
Forward Voltage Vf
1.6V
Maximum Power Dissipation Pd
110W
Maximum Gate Source Voltage Vgs
20 V
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
28nC
Maximum Operating Temperature
175°C
Standards/Approvals
No
Width
4.6 mm
Height
15.75mm
Length
10.4mm
Automotive Standard
No
Product details
N-Channel STripFET™, STMicroelectronics
MOSFET Transistors, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
89.30 MOP
17.869 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
89.30 MOP
17.869 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 10 | 17.869 MOP | 89.34 MOP |
| 15 - 20 | 17.436 MOP | 87.18 MOP |
| 25+ | 17.168 MOP | 85.84 MOP |
