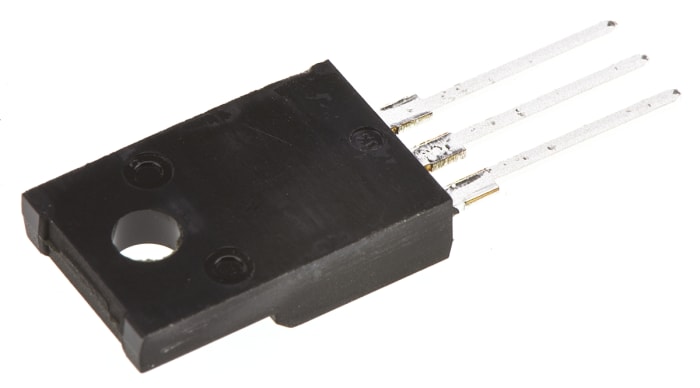

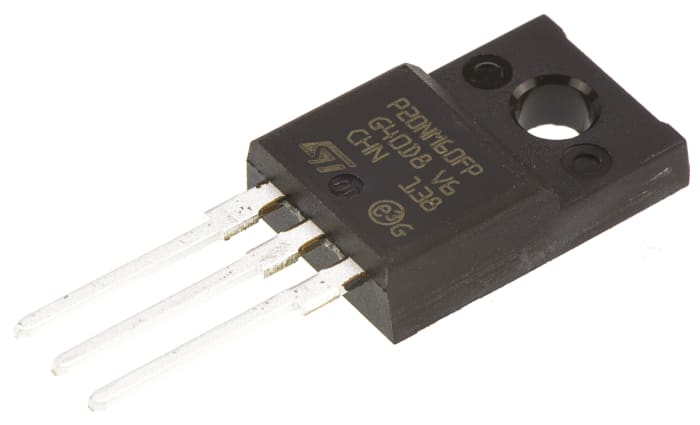

STMicroelectronics MDmesh Type N-Channel MOSFET, 20 A, 600 V Enhancement, 3-Pin TO-220 STP20NM60FP

RS Stock No.: 486-2234PBrand: STMicroelectronicsManufacturers Part No.: STP20NM60FP
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

20A

Maximum Drain Source Voltage Vds

600V

Package Type

TO-220

Series

MDmesh

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

290mΩ

Channel Mode

Enhancement

Forward Voltage Vf

1.5V

Maximum Power Dissipation Pd

45W

Maximum Gate Source Voltage Vgs

30 V

Minimum Operating Temperature

-65°C

Typical Gate Charge Qg @ Vgs

39nC

Maximum Operating Temperature

150°C

Standards/Approvals

No

Width

4.6 mm

Height

9.3mm

Length

10.4mm

Automotive Standard

No

Product details

N-Channel MDmesh™, 600V/650V, STMicroelectronics

MOSFET Transistors, STMicroelectronics
