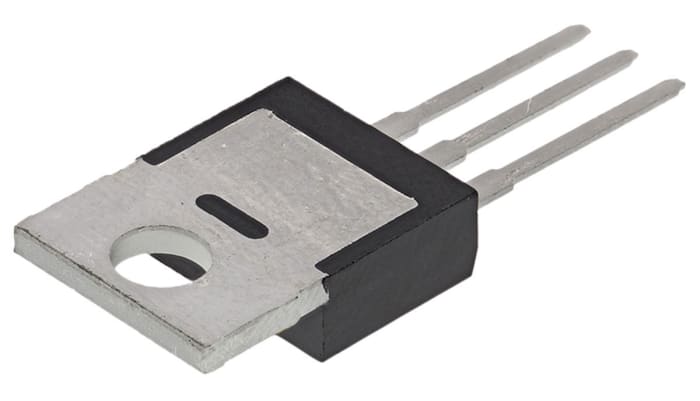

STMicroelectronics STripFET Type N-Channel MOSFET, 26 A, 100 V Enhancement, 3-Pin TO-220

RS Stock No.: 687-5377Brand: STMicroelectronicsManufacturers Part No.: STP24NF10
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

26A

Maximum Drain Source Voltage Vds

100V

Package Type

TO-220

Series

STripFET

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

70mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

85W

Maximum Gate Source Voltage Vgs

20 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

30nC

Forward Voltage Vf

1.5V

Maximum Operating Temperature

175°C

Width

4.6 mm

Height

9.15mm

Length

10.4mm

Standards/Approvals

No

Automotive Standard

No

Product details

N-Channel STripFET™, STMicroelectronics

MOSFET Transistors, STMicroelectronics
