Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
30A
Maximum Drain Source Voltage Vds
60V
Package Type

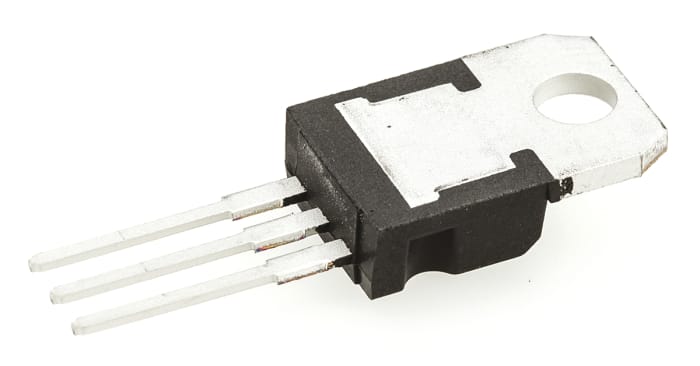

TO-220
Series
STripFET
Mount Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance Rds
40mΩ
Channel Mode
Enhancement
Maximum Power Dissipation Pd
70W
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
13nC
Maximum Gate Source Voltage Vgs
18V
Forward Voltage Vf
1.5V
Maximum Operating Temperature
175°C
Height
9.15mm
Length
10.4mm
Standards/Approvals
No
Width
4.6mm
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
81.90 MOP
16.385 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
81.90 MOP
16.385 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 10 | 16.385 MOP | 81.92 MOP |
| 15 - 20 | 16.014 MOP | 80.07 MOP |
| 25+ | 15.767 MOP | 78.83 MOP |
