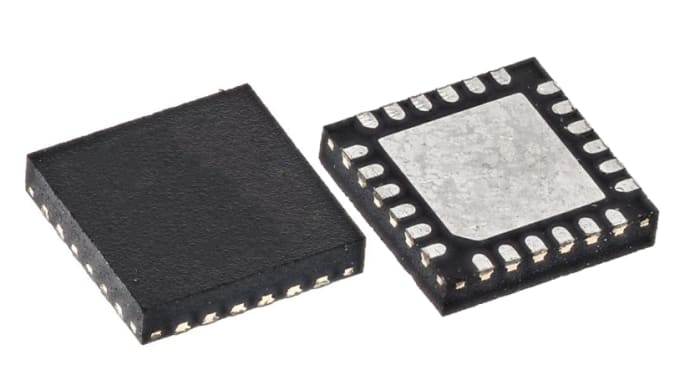

STMicroelectronics STPD01PUR, 1-Channel Buck, Buck Boost Switching Regulator, 3 A, 22 V 750 kHz, QFN (3 x 4 mm) 24-Pin

RS Stock No.: 210-9077Brand: STMicroelectronicsManufacturers Part No.: STPD01PUR
brand-logo
View all in Voltage Regulators

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Buck Boost Switching Regulator

Regulator Type

Buck

Number of Outputs

1

Output Voltage

22 V

Switching Frequency

750kHz

Mount Type

Surface Mount

Polarity

Positive

Package Type

QFN (3 x 4 mm)

Quiescent Current

16μA

Output Current

3A

Pin Count

24

Output Type

Selectable

Switching Regulator

Yes

Standards/Approvals

RoHS

Series

STPD01

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Maximum Input Voltage

26.4V

Minimum Input Voltage

6V

Automotive Standard

No
