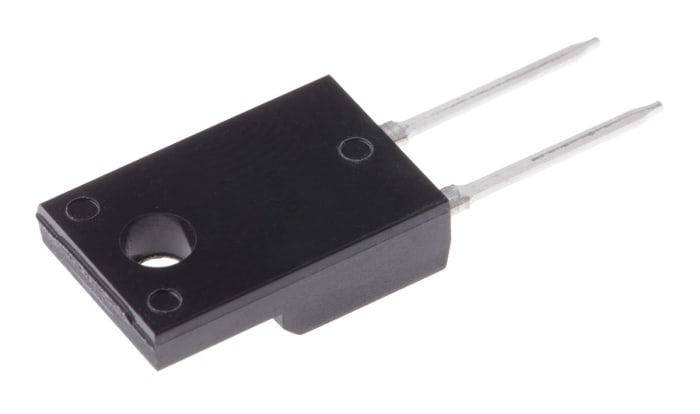

STMicroelectronics 45 V 15 A Diode Schottky 2-Pin TO-220

RS Stock No.: 810-7336Brand: STMicroelectronicsManufacturers Part No.: STPS1545FP
brand-logo
View all in Schottky Diodes & Rectifiers

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Through Hole

Package Type

TO-220

Maximum Continuous Forward Current If

15A

Peak Reverse Repetitive Voltage Vrrm

45V

Series

STPS1545

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

2

Peak Reverse Current Ir

1A

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

220A

Maximum Forward Voltage Vf

840mV

Maximum Operating Temperature

175°C

Width

4.6 mm

Height

16.4mm

Length

10.4mm

Diameter

3.85 mm

Standards/Approvals

No

Automotive Standard

No

Product details

Schottky Barrier Diodes, 10A to 16A, STMicroelectronics
