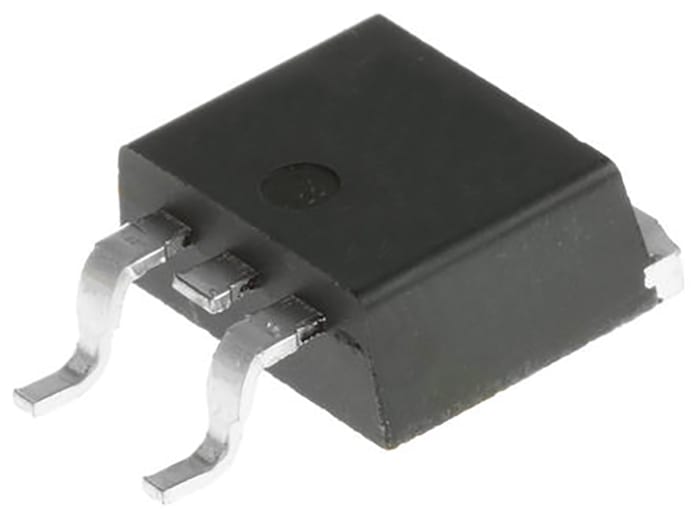

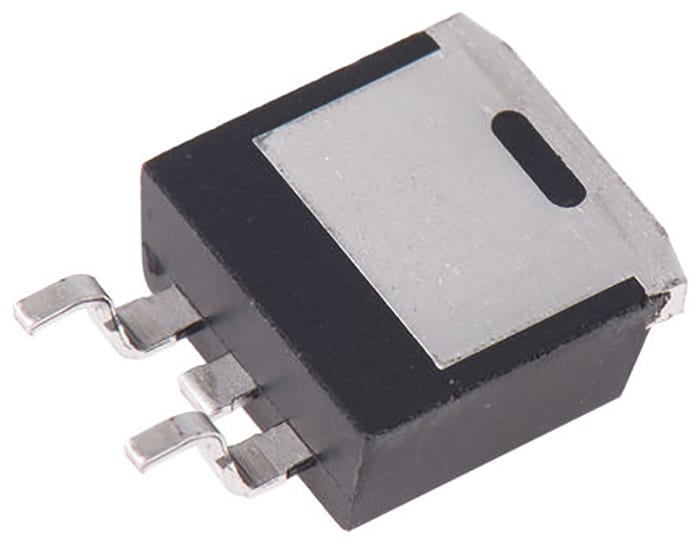

STMicroelectronics 100 V 20 A Diode Schottky 3-Pin D2PAK

RS Stock No.: 653-1279Brand: STMicroelectronicsManufacturers Part No.: STPS20H100CG
brand-logo
View all in Schottky Diodes & Rectifiers

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Surface

Package Type

TO-263

Maximum Continuous Forward Current If

20A

Peak Reverse Repetitive Voltage Vrrm

100V

Diode Configuration

Common Cathode

Series

STPS20H100C

Rectifier Type

Schottky

Pin Count

3

Peak Reverse Current Ir

4.5μA

Maximum Forward Voltage Vf

0.59V

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

250A

Maximum Operating Temperature

175°C

Width

9.35 mm

Length

10.4mm

Height

4.6mm

Standards/Approvals

No

Automotive Standard

No

Product details

Schottky Barrier Diodes, 20A to 25A, STMicroelectronics

Diodes and Rectifiers, STMicroelectronics
