Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Surface
Package Type

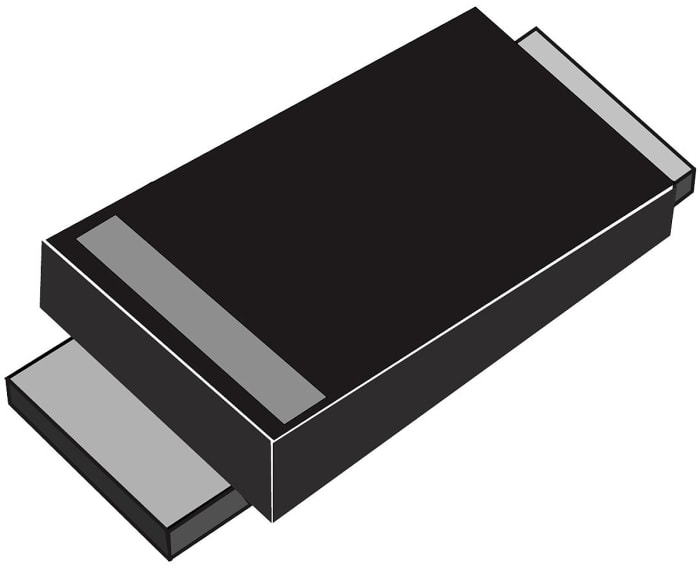

SOD-128
Maximum Continuous Forward Current If
2A
Peak Reverse Repetitive Voltage Vrrm
200V
Diode Configuration
Single
Rectifier Type
General Purpose
Pin Count
2
Peak Reverse Current Ir
3μA
Maximum Forward Voltage Vf
1.02V
Minimum Operating Temperature
-40°C
Peak Non-Repetitive Forward Surge Current Ifsm
50A
Peak Reverse Recovery Time trr
22ns
Maximum Operating Temperature
175°C
Length
3.9mm
Height
1.03mm
Standards/Approvals
No
Automotive Standard
AEC-Q101
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
57.50 MOP
2.875 MOP Each (In a Pack of 20) (ex VAT)
Standard
20
57.50 MOP
2.875 MOP Each (In a Pack of 20) (ex VAT)
Stock information temporarily unavailable.
Standard
20
| quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 740 | 2.875 MOP | 57.50 MOP |
| 760 - 1480 | 2.803 MOP | 56.06 MOP |
| 1500+ | 2.762 MOP | 55.24 MOP |
