Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type

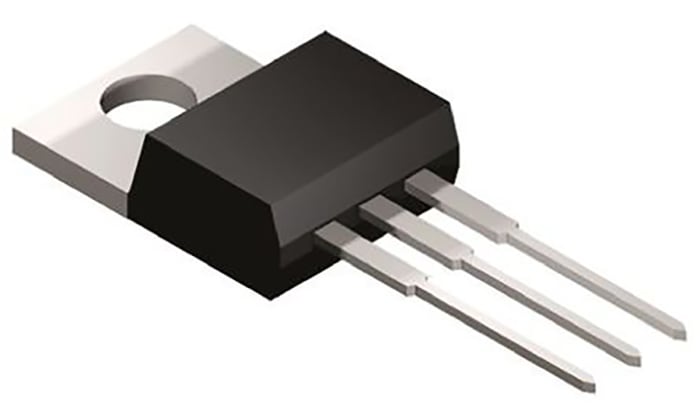

TO-220
Maximum Continuous Forward Current If
8A
Peak Reverse Repetitive Voltage Vrrm
600V
Diode Configuration
Series
Series
STTH
Rectifier Type
Switching
Pin Count
3
Peak Reverse Current Ir
10μA
Maximum Forward Voltage Vf
3.6V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
80A
Peak Reverse Recovery Time trr
30ns
Maximum Operating Temperature
150°C
Length
10.4mm
Height
9.15mm
Standards/Approvals
No
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
12.10 MOP
12.06 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
1
12.10 MOP
12.06 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
1
| quantity | Unit price |
|---|---|
| 1 - 12 | 12.06 MOP |
| 13 - 24 | 11.85 MOP |
| 25+ | 11.64 MOP |
