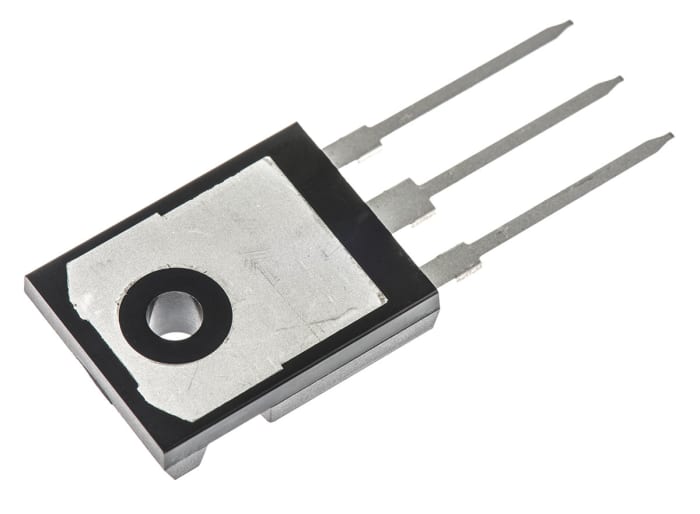

STMicroelectronics MDmesh M5 Type N-Channel MOSFET, 30 A, 710 V Enhancement, 3-Pin TO-247

Name: STMicroelectronics MDmesh M5 Type N-Channel MOSFET, 30 A, 710 V Enhancement, 3-Pin TO-247
Brand: STMicroelectronics
SKU: 7832999P
Availability: LimitedAvailability

RS Stock No.: 783-2999PBrand: STMicroelectronicsManufacturers Part No.: STW38N65M5

View all in MOSFETs

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

30A

Maximum Drain Source Voltage Vds

710V

Package Type

TO-247

Series

MDmesh M5

Mount Type

Through Hole

Pin Count

Maximum Drain Source Resistance Rds

95mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

190W

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

71nC

Forward Voltage Vf

1.5V

Maximum Operating Temperature

150°C

Height

20.15mm

Length

15.75mm

Standards/Approvals

Automotive Standard

Country of Origin

China

Product Details

N-channel MDmesh™ M5 Series, STMicroelectronics

The MDmesh M5 power MOSFETs are optimised for high-power PFC and PWM topologies. Main features include a low on-state losses per silicon area combined with low gate charge. They are designed for energy-conscious, compact and reliable hard switching applications, such as solar power converters, power supplies for consumer products and electronic lighting controls.

MOSFET Transistors, STMicroelectronics

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in MOSFETs

Stock information temporarily unavailable.

53.60 MOP

53.59 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics MDmesh M5 Type N-Channel MOSFET, 30 A, 710 V Enhancement, 3-Pin TO-247

Select packaging type

Production pack (Tube)

53.60 MOP

53.59 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics MDmesh M5 Type N-Channel MOSFET, 30 A, 710 V Enhancement, 3-Pin TO-247

Stock information temporarily unavailable.

Select packaging type

Production pack (Tube)

quantity	Unit price
1 - 7	53.59 MOP
8 - 14	52.04 MOP
15+	50.39 MOP
