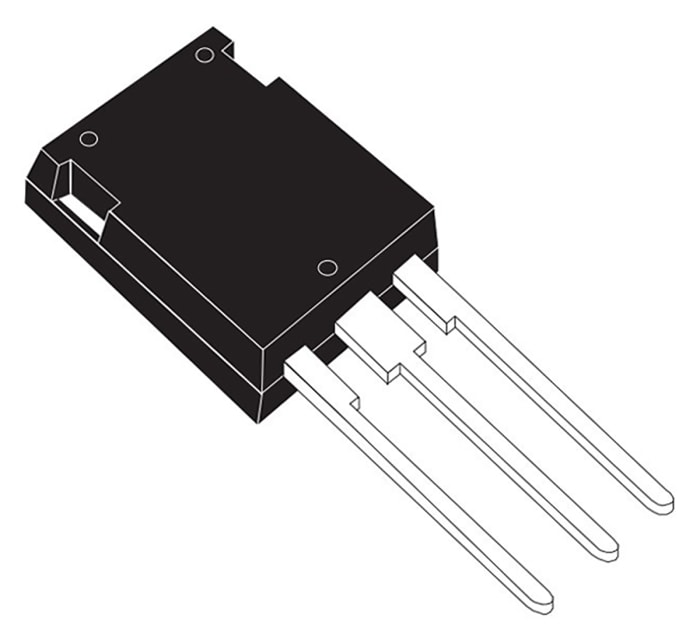

STMicroelectronics MDmesh Type N-Channel MOSFET, 138 A, 650 V Enhancement, 3-Pin STY145N65M5

RS Stock No.: 880-5474Brand: STMicroelectronicsManufacturers Part No.: STY145N65M5
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

138A

Maximum Drain Source Voltage Vds

650V

Series

MDmesh

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

15mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

414nC

Maximum Power Dissipation Pd

625W

Maximum Gate Source Voltage Vgs

25 V

Forward Voltage Vf

1.5V

Maximum Operating Temperature

150°C

Width

5.3 mm

Length

15.9mm

Standards/Approvals

No

Height

20.3mm

Automotive Standard

No

Product details

N-Channel MDmesh™, 600V/650V, STMicroelectronics

MOSFET Transistors, STMicroelectronics
