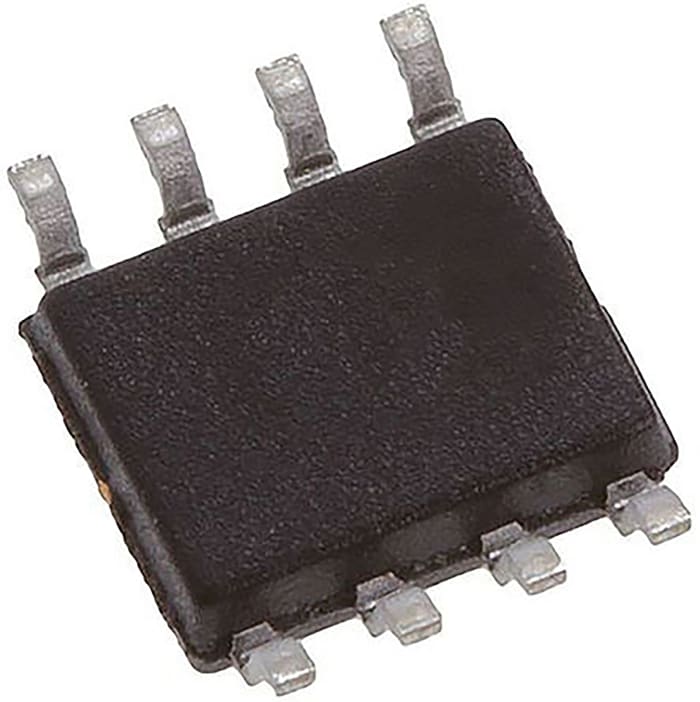

STMicroelectronics Adjustable Shunt Voltage Reference ±0.25 % 8-Pin SOIC, TL1431AIDT

RS Stock No.: 795-8650Brand: STMicroelectronicsManufacturers Part No.: TL1431AIDT
brand-logo
View all in Voltage References

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Voltage Reference

Package Type

SOIC

Reference Voltage

2.5V

Output Voltage

2.5/36 V

Reference Type

Adjustable

Initial Accuracy

±0.25 %

Temperature Coefficient

13 ppm/°C

Mount Type

Surface

Topology

Shunt

Maximum Input Voltage

37V

Output Current

100mA

Pin Count

8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Standards/Approvals

No

Series

TL1431

Width

4 mm

Height

1.5mm

Length

5mm

Output Type

Adjustable

Automotive Standard

AEC-Q100, AEC-Q3

Product details

Voltage Reference, Adjustable, STMicroelectronics

Voltage References, STMicroelectronics
