STMicroelectronics TS1220-600B, Thyristor 700 V, 8 A 200 μA 115 A 1.6 V

Name: STMicroelectronics TS1220-600B, Thyristor 700 V, 8 A 200 μA 115 A 1.6 V
Brand: STMicroelectronics
SKU: 8290680P
Availability: LimitedAvailability

RS Stock No.: 829-0680PBrand: STMicroelectronicsManufacturers Part No.: TS1220-600B

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

Product Type

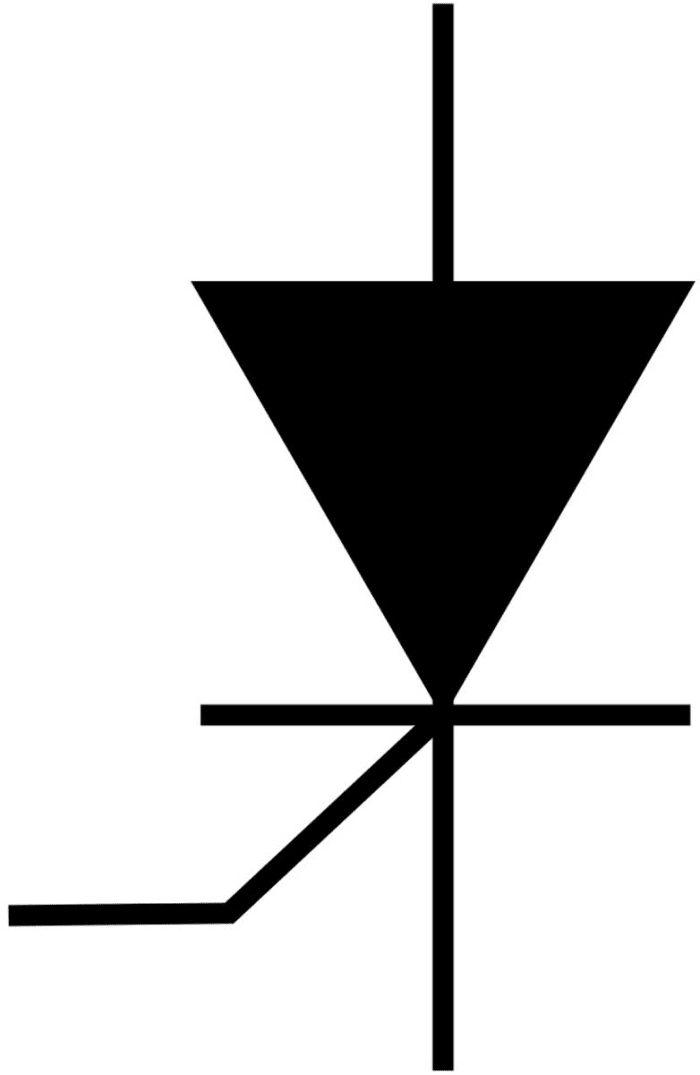

Thyristor

Thyristor Type

SCR

Package Type

TO-252

Repetitive Peak Reverse Voltage VDRM

700V

Surge Current Rating

115A

Mount Type

Surface

Maximum Gate Trigger Current Igt

200μA

Pin Count

Minimum Operating Temperature

-40°C

Maximum Holding Current Ih

5mA

Maximum Gate Trigger Voltage Vgt

0.8V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

12 A SCR

Repetitive Peak Off-State Current

5μA

Peak On-State Voltage

1.6V

Automotive Standard

Product Details

Sensitive Gate Thyristors, STMicroelectronics

A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Thyristors

Stock information temporarily unavailable.

48.70 MOP

4.874 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics TS1220-600B, Thyristor 700 V, 8 A 200 μA 115 A 1.6 V

Select packaging type

Production pack (Tube)

48.70 MOP

4.874 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics TS1220-600B, Thyristor 700 V, 8 A 200 μA 115 A 1.6 V

Stock information temporarily unavailable.

Select packaging type

Production pack (Tube)

quantity	Unit price	Per Tube
10 - 10	4.874 MOP	48.74 MOP
20 - 40	4.782 MOP	47.82 MOP
50 - 90	4.637 MOP	46.37 MOP
100 - 190	4.545 MOP	45.44 MOP
200+	4.514 MOP	45.14 MOP
