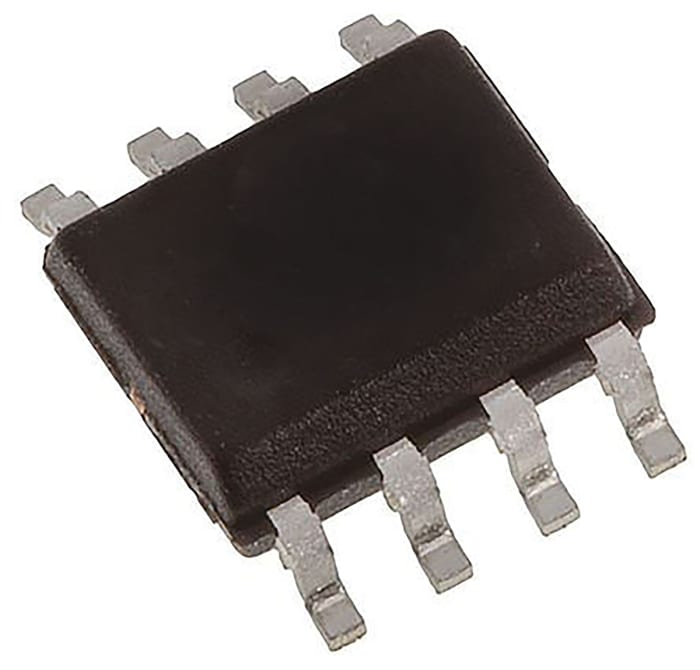

TS272IDT STMicroelectronics, Operational Amplifier, 3.5 MHz, 8-Pin 16V SOIC

Name: TS272IDT STMicroelectronics, Operational Amplifier, 3.5 MHz, 8-Pin 16V SOIC
Brand: STMicroelectronics
SKU: 6867569
Availability: LimitedAvailability

RS Stock No.: 686-7569Brand: STMicroelectronicsManufacturers Part No.: TS272IDT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOIC

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

3.5MHz

Minimum Supply Voltage

Maximum Supply Voltage

16V

Input Bias Current

300 pA

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

3 mV

Slew Rate

5.5V/μs

Maximum Operating Temperature

125°C

Height

1.65mm

Length

5mm

Standards/Approvals

RoHS

Series

TS272

Output Current

45mA

Automotive Standard

Input Offset Current

200 pA

Product Details

TS272, TS274, Micro-Power, Wide Range of Input Offset Voltage Operational Amplifiers

The TS272 (dual) and the TS274 (quad) CMOS operational amplifiers offer an excellent consumption-to-speed ratio.

Output voltage can swing to ground
Gain bandwidth product: 3.5 MHz
Excellent phase margin on capacitive loads
