Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Operational Amplifier
Mount Type
Surface

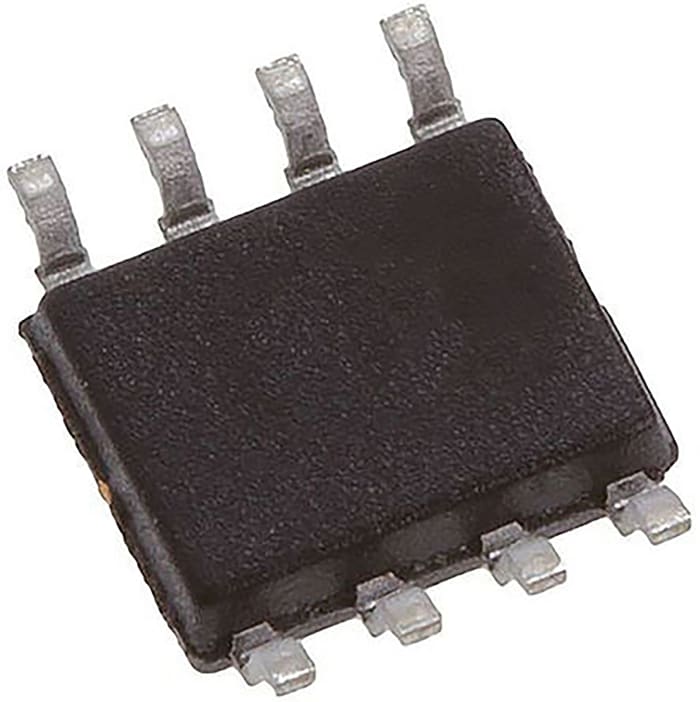

Package Type
SOIC
Number of Channels
2
Pin Count
8
GBP - Gain Bandwidth Product
1.4MHz
Minimum Supply Voltage
3V
Maximum Supply Voltage
6V
Input Bias Current
150 nA
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
3 mV
Slew Rate
0.6V/μs
Maximum Operating Temperature
125°C
Height
1.25mm
Length
4.9mm
Standards/Approvals
RoHS
Series
TSV358
Output Current
80mA
Automotive Standard
AEC-Q100
Input Offset Current
60 nA
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
70.70 MOP
7.069 MOP Each (In a Pack of 10) (ex VAT)
Standard
10
70.70 MOP
7.069 MOP Each (In a Pack of 10) (ex VAT)
Stock information temporarily unavailable.
Standard
10
| quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 620 | 7.069 MOP | 70.69 MOP |
| 630 - 1240 | 6.853 MOP | 68.53 MOP |
| 1250+ | 6.657 MOP | 66.57 MOP |
