Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Operational Amplifier
Mount Type
Surface
Package Type
SC-70
Number of Channels
1
Pin Count
5
GBP - Gain Bandwidth Product
150kHz
Minimum Supply Voltage
1.5V
Maximum Supply Voltage
5.5V
Input Bias Current
300 pA
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
1200 μV
Slew Rate
0.06V/μs
Maximum Operating Temperature
125°C
Height
1mm
Length
2.2mm
Standards/Approvals
RoHS
Width
1.35mm
Series
TSV711
Output Current
3mA
Automotive Standard
No
Input Offset Current
300 pA
Product Details

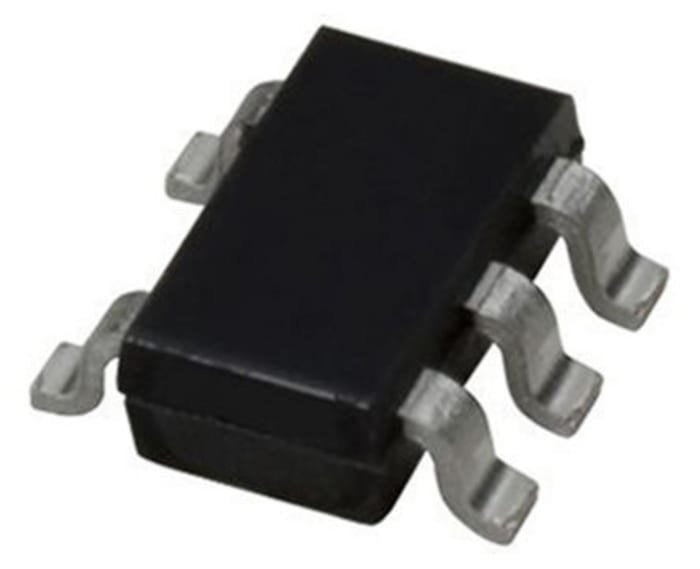

The TSV711 (Single), TSV712 (Dual) and TSV714 (Quad) operational amplifiers offer an excellent speed/power consumption ratio.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
37.00 MOP
7.399 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
5
37.00 MOP
7.399 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
5
| quantity | Unit price | Per Reel |
|---|---|---|
| 5 - 745 | 7.399 MOP | 37.00 MOP |
| 750 - 1495 | 7.214 MOP | 36.07 MOP |
| 1500+ | 7.09 MOP | 35.45 MOP |
