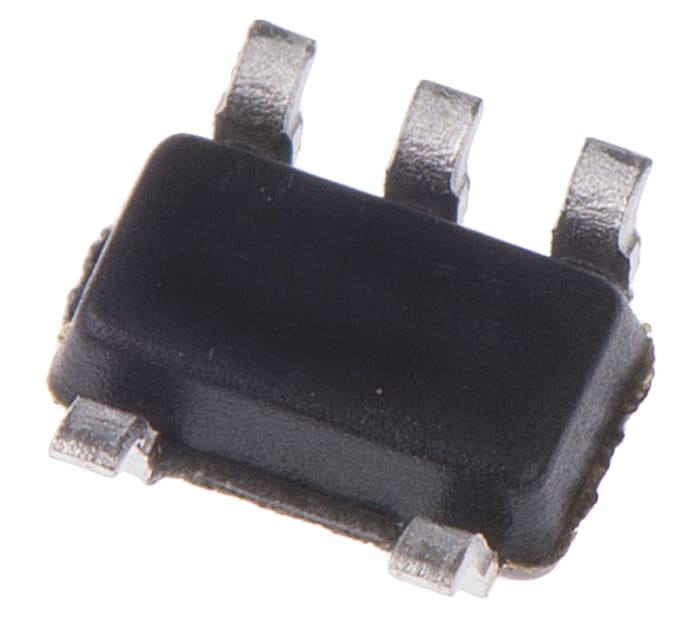

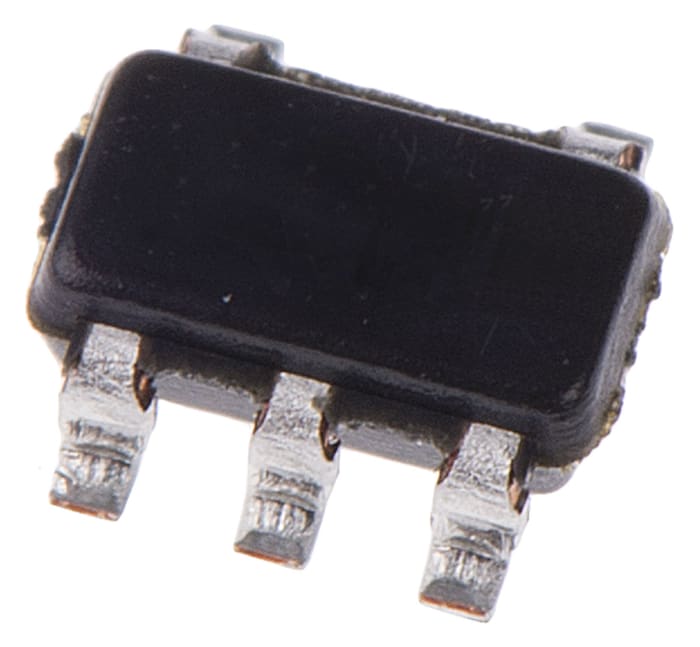

TSX561ILT STMicroelectronics, Operational Amplifier, 900 kHz, 5-Pin 5.5V SOT-23

Name: TSX561ILT STMicroelectronics, Operational Amplifier, 900 kHz, 5-Pin 5.5V SOT-23
Brand: STMicroelectronics
SKU: 7958509
Availability: LimitedAvailability

RS Stock No.: 795-8509Brand: STMicroelectronicsManufacturers Part No.: TSX561ILT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOT-23

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

900kHz

Minimum Supply Voltage

Maximum Supply Voltage

5.5V

Input Bias Current

200 pA

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

2.2 mV

Slew Rate

1.1V/μs

Maximum Operating Temperature

125°C

Height

1.3mm

Length

3mm

Standards/Approvals

RoHS

Series

TSX561

Output Current

2.5mA

Automotive Standard

AEC-Q100

Input Offset Current

200 pA

Product Details

TSX56x, TSX56xA, Micro-Power, 900 kHz, 16 V CMOS Operational Amplifiers

The TSX561 (Single), TSX562 (Dual) and TSX564 (Quad) precision operational amplifiers offer accuracy and performance.

Low power consumption: 235 μA typical (5 V)
Power supply operation from 3 V to 16 V
Gain bandwidth product: 900 kHz typical
Low offset voltage: 600 μV max. (A version)
Low input bias current: 1 pA typical
ESD high tolerance: 4 kV
Wide temperature range: -40°C to +125°C
Automotive qualification

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Op Amps

Stock information temporarily unavailable.

43.90 MOP

8.78 MOP Each (In a Pack of 5) (ex VAT)

TSX561ILT STMicroelectronics, Operational Amplifier, 900 kHz, 5-Pin 5.5V SOT-23

Select packaging type

Standard

43.90 MOP

8.78 MOP Each (In a Pack of 5) (ex VAT)

TSX561ILT STMicroelectronics, Operational Amplifier, 900 kHz, 5-Pin 5.5V SOT-23

Stock information temporarily unavailable.

Select packaging type

Standard

quantity	Unit price	Per Pack
5 - 745	8.78 MOP	43.90 MOP
750 - 1495	8.553 MOP	42.77 MOP
1500+	8.429 MOP	42.15 MOP
