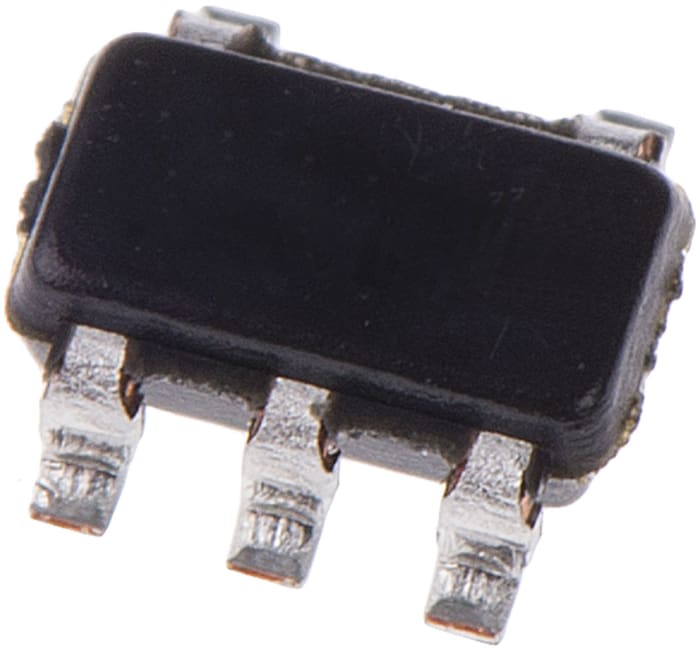

STMicroelectronics, Operational Amplifier, 16 MHz, 5-Pin 16 V SOT-23

RS Stock No.: 829-1633PBrand: STMicroelectronicsManufacturers Part No.: TSX9291ILT
brand-logo
View all in Op Amps

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOT-23

Number of Channels

1

Pin Count

5

GBP - Gain Bandwidth Product

16MHz

Minimum Supply Voltage

4V

Maximum Supply Voltage

16V

Slew Rate

30V/μs

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

5 mV

Input Bias Current

200 pA

Maximum Operating Temperature

125°C

Standards/Approvals

RoHS

Height

1.3mm

Length

3mm

Width

1.75 mm

Series

TSX9291

Automotive Standard

AEC-Q100

Output Current

13mA

Input Offset Current

200 pA

Product details

TSX929x, 16 MHz, Rail-to-Rail I/O, 16 V CMOS Operational Amplifiers

Power supply operation from 4 V to 16 V
Gain bandwidth product: 16 MHz typical (16 V)
Low power consumption: 2.8 mA typical (16 V)
ESD high tolerance: 4 kV (HBM)
Extended temperature range: -40°C to +125°C
Automotive qualification
