Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Thyristor
Rated Average On-State Current Irms
8A
Thyristor Type
SCR
Package Type

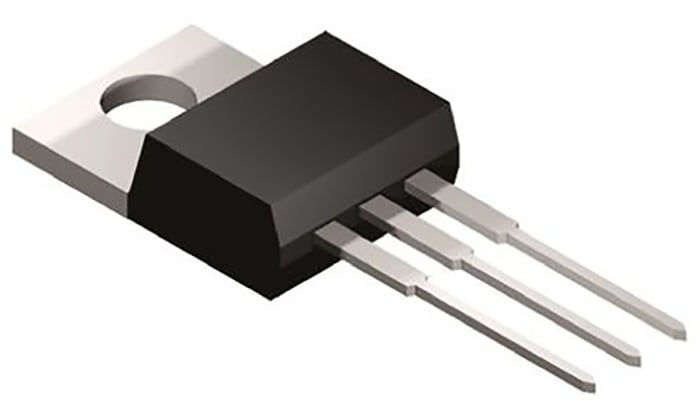

TO-220
Repetitive Peak Reverse Voltage VDRM
1kV
Surge Current Rating
145A
Mount Type
Through Hole
Maximum Gate Trigger Current Igt
15mA
Pin Count
3
Minimum Operating Temperature
-40°C
Maximum Holding Current Ih
30mA
Maximum Gate Trigger Voltage Vgt
1.3V
Maximum Operating Temperature
125°C
Standards/Approvals
No
Series
12 A SCR
Repetitive Peak Off-State Current
5μA
Peak On-State Voltage
1.6V
Automotive Standard
No
Product Details
A wide range of general purpose Thyristors from STMicroelectronics with blocking voltage ratings of 400 to 1200V and on-state current rating of up to 50A.
STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
79.60 MOP
15.911 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
5
79.60 MOP
15.911 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
5
| quantity | Unit price | Per Tube |
|---|---|---|
| 5 - 10 | 15.911 MOP | 79.56 MOP |
| 15 - 20 | 15.519 MOP | 77.60 MOP |
| 25+ | 15.272 MOP | 76.36 MOP |
