STMicroelectronics, Thyristor 600 V, 25 A 35 mA 480 A 1.6 V

Name: STMicroelectronics, Thyristor 600 V, 25 A 35 mA 480 A 1.6 V
Brand: STMicroelectronics
SKU: 6871019P
Availability: LimitedAvailability

RS Stock No.: 687-1019PBrand: STMicroelectronicsManufacturers Part No.: TYN640RG

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

25A

Product Type

Thyristor

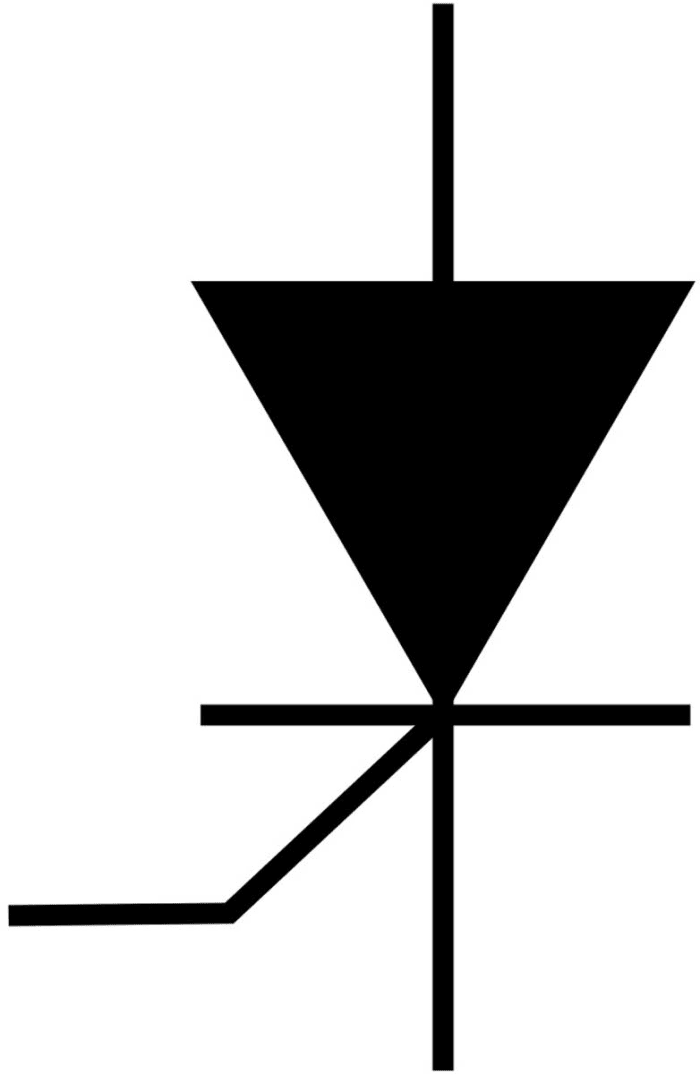

Thyristor Type

SCR

Package Type

TO-220

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

480A

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

35mA

Pin Count

Minimum Operating Temperature

-40°C

Maximum Holding Current Ih

75mA

Maximum Gate Trigger Voltage Vgt

1.3V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

40 A SCRs

Repetitive Peak Off-State Current

5μA

Peak On-State Voltage

1.6V

Automotive Standard

Product Details

Thyristors, STMicroelectronics

A wide range of general purpose Thyristors from STMicroelectronics with blocking voltage ratings of 400 to 1200V and on-state current rating of up to 50A.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Thyristors

Stock information temporarily unavailable.

34.40 MOP

17.209 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics, Thyristor 600 V, 25 A 35 mA 480 A 1.6 V

Select packaging type

Production pack (Tube)

34.40 MOP

17.209 MOP Each (Supplied in a Tube) (ex VAT)

STMicroelectronics, Thyristor 600 V, 25 A 35 mA 480 A 1.6 V

Stock information temporarily unavailable.

Select packaging type

Production pack (Tube)

quantity	Unit price	Per Tube
2 - 12	17.209 MOP	34.42 MOP
14 - 24	16.694 MOP	33.39 MOP
26+	16.488 MOP	32.98 MOP
