Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
PWM Controller
Maximum Switching Frequency
500kHz
Zero Power Detection
No
Output Current
1A
Mount Type
Surface
Package Type

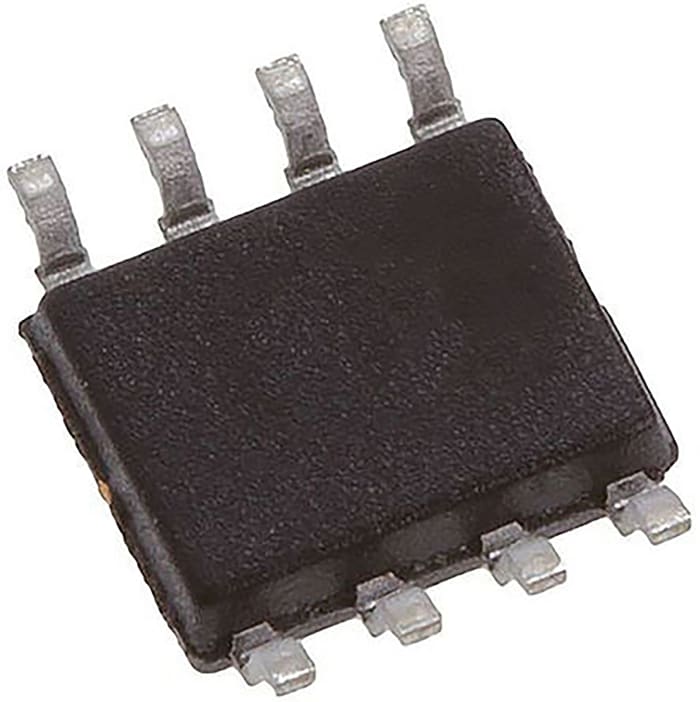

SOIC
Pin Count
8
Maximum Supply Voltage
30V
Maximum Duty Cycle
100%
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
150°C
PWM Controller Type
Current Mode
Length
5mm
Height
1.65mm
Standards/Approvals
No
Automotive Standard
No
Product Details
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
65.40 MOP
6.544 MOP Each (In a Pack of 10) (ex VAT)
Standard
10
65.40 MOP
6.544 MOP Each (In a Pack of 10) (ex VAT)
Stock information temporarily unavailable.
Standard
10
| quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 20 | 6.544 MOP | 65.44 MOP |
| 30 - 40 | 6.389 MOP | 63.89 MOP |
| 50+ | 6.286 MOP | 62.86 MOP |
