STMicroelectronics X0202MA 1BA2, Thyristor 600 V, 1.25 A 200 μA 25 A

Name: STMicroelectronics X0202MA 1BA2, Thyristor 600 V, 1.25 A 200 μA 25 A
Brand: STMicroelectronics
SKU: 7959142
Availability: LimitedAvailability

RS Stock No.: 795-9142Brand: STMicroelectronicsManufacturers Part No.: X0202MA 1BA2

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

1.25A

Product Type

Thyristor

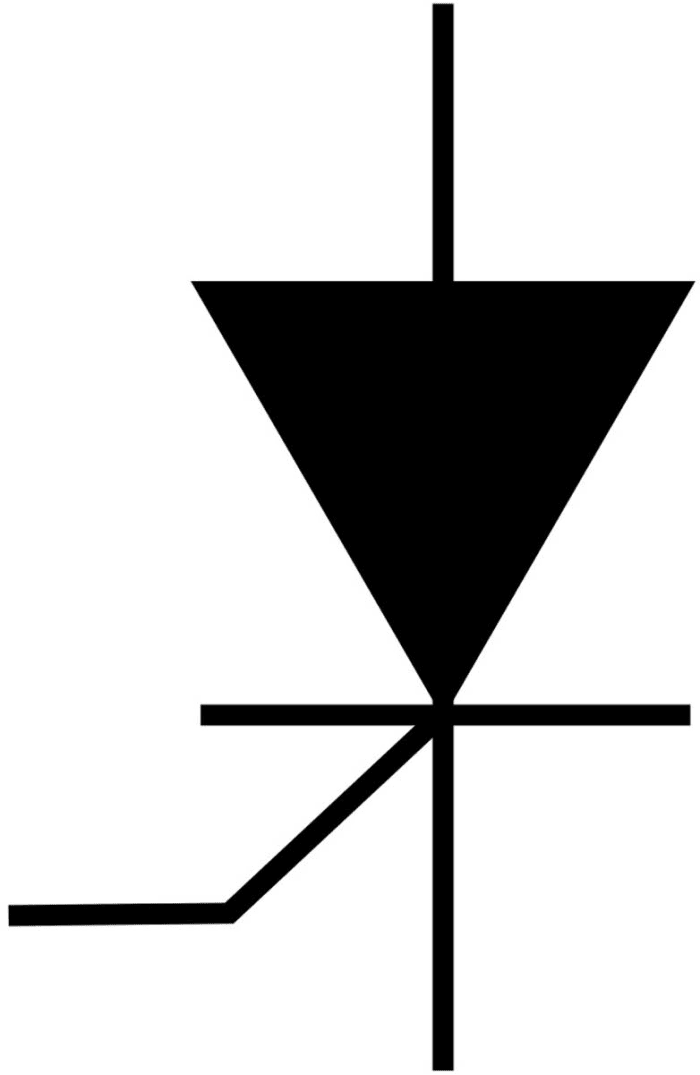

Thyristor Type

SCR

Package Type

TO-92

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

25A

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

200μA

Pin Count

Maximum Holding Current Ih

5mA

Minimum Operating Temperature

-40°C

Maximum Gate Trigger Voltage Vgt

0.8V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

X02

Repetitive Peak Off-State Current

500μA

Automotive Standard

Product Details

Sensitive Gate Thyristors, STMicroelectronics

A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
