STMicroelectronics, Thyristor 600 V, 0.8 A 0.2 mA 25 A 1.45 V

Name: STMicroelectronics, Thyristor 600 V, 0.8 A 0.2 mA 25 A 1.45 V
Brand: STMicroelectronics
SKU: 6870962P
Availability: LimitedAvailability

RS Stock No.: 687-0962PBrand: STMicroelectronicsManufacturers Part No.: X0202MN 5BA4

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

0.8A

Product Type

Thyristor

Thyristor Type

SCR

Package Type

SOT-223

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

25A

Mount Type

Surface

Maximum Gate Trigger Current Igt

0.2mA

Pin Count

Minimum Operating Temperature

-40°C

Maximum Holding Current Ih

5mA

Maximum Gate Trigger Voltage Vgt

0.8V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

X02

Repetitive Peak Off-State Current

5μA

Peak On-State Voltage

1.45V

Automotive Standard

Product Details

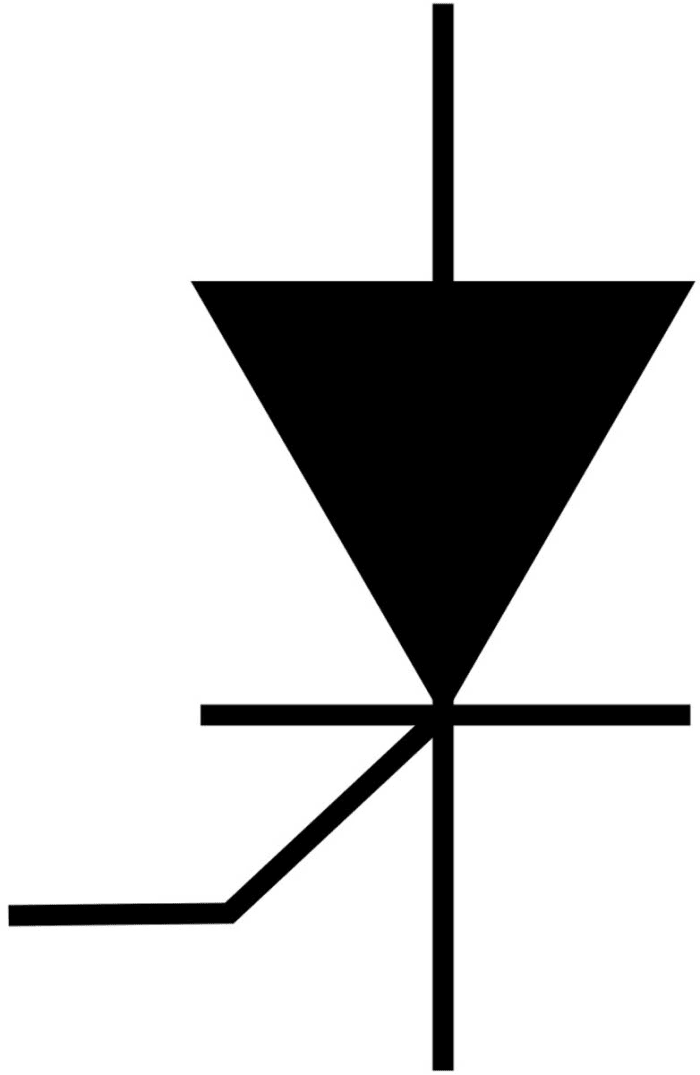

Sensitive Gate Thyristors, STMicroelectronics

A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Thyristors

Stock information temporarily unavailable.

24.00 MOP

4.802 MOP Each (Supplied on a Reel) (ex VAT)

STMicroelectronics, Thyristor 600 V, 0.8 A 0.2 mA 25 A 1.45 V

Select packaging type

Production pack (Reel)

24.00 MOP

4.802 MOP Each (Supplied on a Reel) (ex VAT)

STMicroelectronics, Thyristor 600 V, 0.8 A 0.2 mA 25 A 1.45 V

Stock information temporarily unavailable.

Select packaging type

Production pack (Reel)

quantity	Unit price	Per Reel
5 - 245	4.802 MOP	24.01 MOP
250 - 495	4.72 MOP	23.60 MOP
500+	4.596 MOP	22.98 MOP
