Technical Documents
Specifications
Brand
TE ConnectivityContact Configuration
SPST
Product Type
Tactile Switch
Terminal Type
Solder
Switch Operation
Momentary
Actuator Colour
White
Actuator Length
4.24mm
Length
6.85mm
Width
3.2mm
Illuminated
No
Mount Type
Through Hole
Minimum Operating Temperature
-40°C
Contact DC Voltage
24V dc
Actuator Style
Button
Actuator Orientation
Top
Switch Contact Current
50mA
Switch Configuration
SPST
Maximum Operating Temperature
85°C
Series
FSM
IP Rating
IP67
Standards/Approvals
EU RoHS, China RoHS 2, EU ELV, EU REACH
Height
7mm
Operating Force
1.6N
Mechanical Life
100000Operations
Product Details

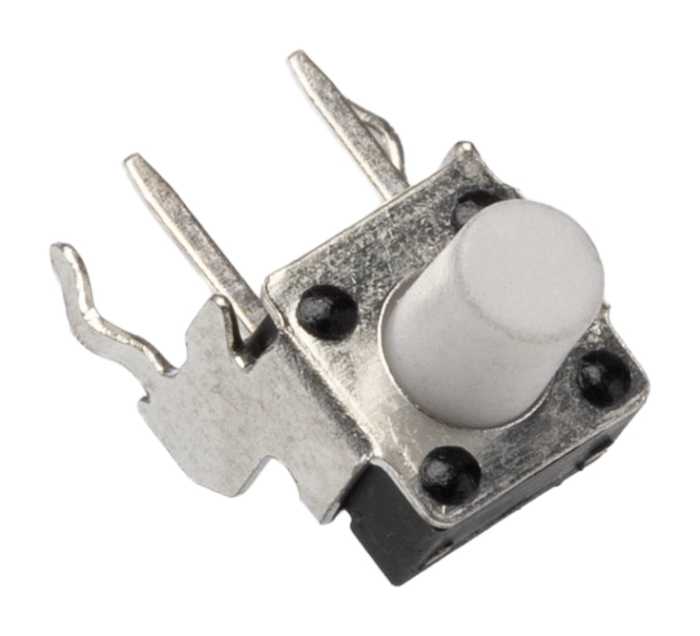

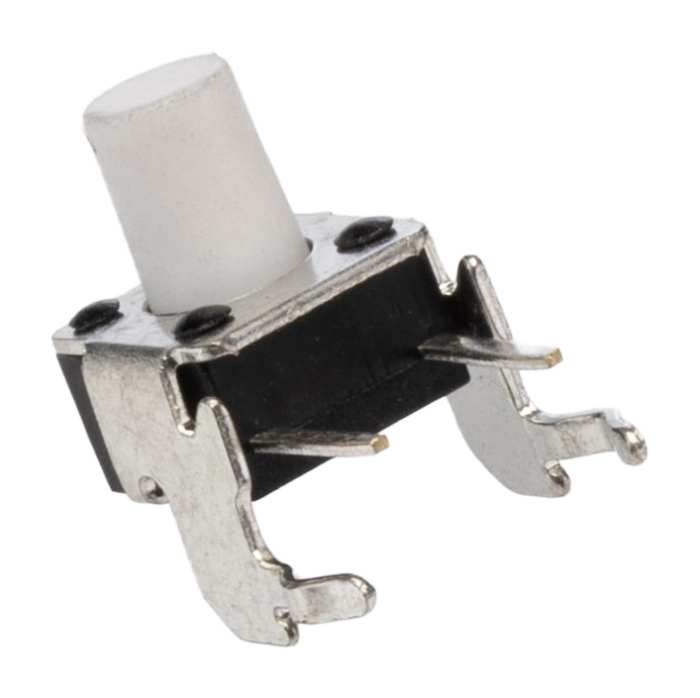

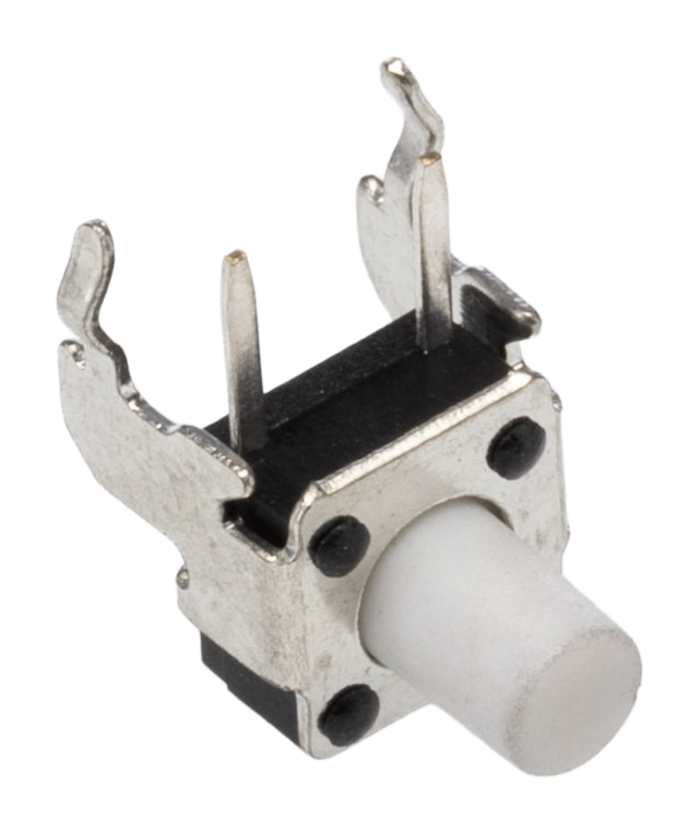

TE Connectivity brings you a range of professional and brilliant tactile switches. The FSM series of tactile switches are housed in a strong 'Nylon 66' material and feature a moving contact of copper alloy-silver. These tactile switches are great use for mounting on your PCB to close a circuit. The small tactile switches come in THT & SMT mounting styles and excellent quality.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
9.20 MOP
1.834 MOP Each (Supplied in a Bag) (ex VAT)
Production pack (Bag)
5
9.20 MOP
1.834 MOP Each (Supplied in a Bag) (ex VAT)
Stock information temporarily unavailable.
Production pack (Bag)
5
| quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 245 | 1.834 MOP | 9.17 MOP |
| 250 - 495 | 1.793 MOP | 8.96 MOP |
| 500+ | 1.752 MOP | 8.76 MOP |
