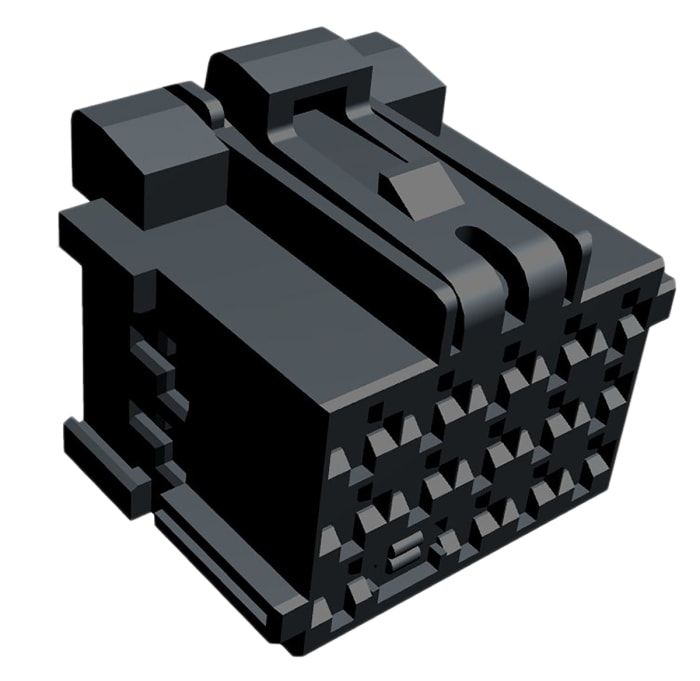

TE Connectivity, Junior Power Timer Automotive Connector Socket Black Plug-In 14 Way 1355206-1
Technical Document
Specifications
Brand
TE ConnectivityNumber Of Contacts
14
Type
Automotive connector housing
Gender
Female
Number Of Rows
3
Mounting Type
Plug-In
Series
Junior Power Timer
Colour
Black
Height
18.2mm
Width
26.2mm
Depth
26.5mm
Housing Material
PBT
Product details
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
TE Connectivity Automotive Connectors
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
60.10 MOP
60.08 MOP Each (ex VAT)
1
60.10 MOP
60.08 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 174 | 60.08 MOP |
| 175 - 349 | 58.74 MOP |
| 350+ | 57.50 MOP |
