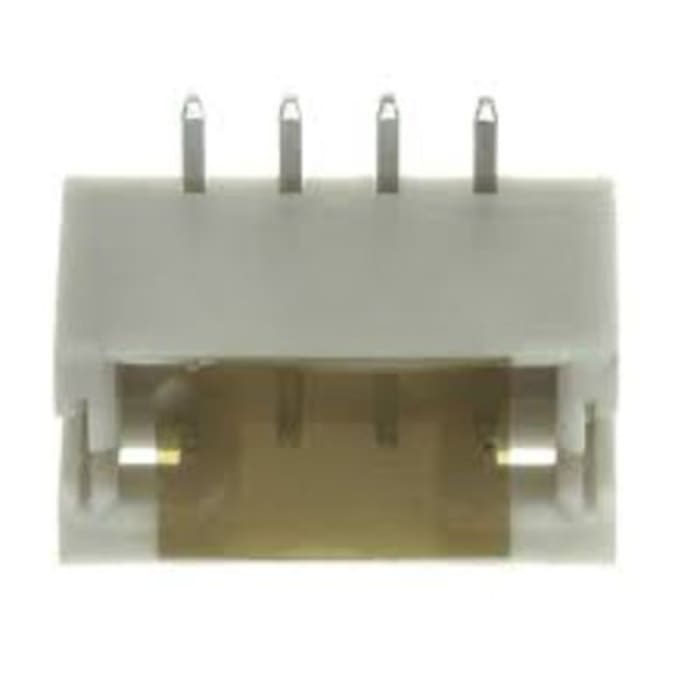

TE Connectivity HPI Series Vertical Surface PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded

RS Stock No.: 217-5408Brand: TE ConnectivityManufacturers Part No.: 1775470-4
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

TE Connectivity

Series

HPI

Product Type

PCB Header

Pitch

2mm

Current

3A

Number of Contacts

4

Housing Material

Polyamide 9T Fibreglass

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Connector System

Wire-to-Board

Contact Material

Brass

Contact Plating

Tin

Minimum Operating Temperature

-25°C

Row Pitch

2mm

Termination Type

Surface Mount

Contact Gender

Male

Tail Pin Length

2mm

Maximum Operating Temperature

85°C

Standards/Approvals

UL 94 V-0

Voltage

250 V

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
View all in PCB Headers

Stock information temporarily unavailable.

1,645.50 MOP

3.291 MOP Each (On a Reel of 500) (ex VAT)

TE Connectivity HPI Series Vertical Surface PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded

500

Available in multiples of 500
5001,645.50 MOP
10003,225.30 MOP
15004,837.90 MOP
20006,321.50 MOP
25007,901.90 MOP
30009,482.20 MOP
350011,062.60 MOP
400012,643.00 MOP
450014,223.40 MOP
500015,803.70 MOP
550017,384.10 MOP
600018,964.50 MOP
650020,544.90 MOP
700022,125.20 MOP
750023,705.60 MOP

1,645.50 MOP

3.291 MOP Each (On a Reel of 500) (ex VAT)

TE Connectivity HPI Series Vertical Surface PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded

Stock information temporarily unavailable.

500

Available in multiples of 500
5001,645.50 MOP
10003,225.30 MOP
15004,837.90 MOP
20006,321.50 MOP
25007,901.90 MOP
30009,482.20 MOP
350011,062.60 MOP
400012,643.00 MOP
450014,223.40 MOP
500015,803.70 MOP
550017,384.10 MOP
600018,964.50 MOP
650020,544.90 MOP
700022,125.20 MOP
750023,705.60 MOP

quantityUnit pricePer Reel
500 - 5003.291 MOP1,645.50 MOP
1000 - 15003.225 MOP1,612.63 MOP
2000+3.161 MOP1,580.38 MOP
