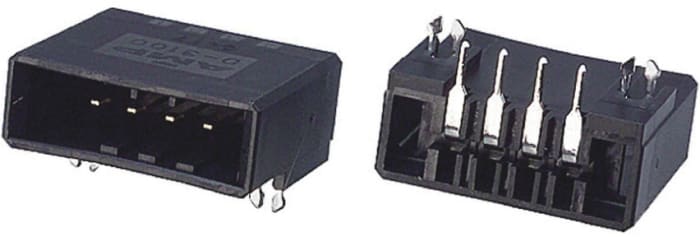

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 4 Contact(s), 3.81 mm Pitch, 1 Row, Shrouded

Name: TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 4 Contact(s), 3.81 mm Pitch, 1 Row, Shrouded
Brand: TE Connectivity
SKU: 7195382
Availability: LimitedAvailability

RS Stock No.: 719-5382Brand: TE ConnectivityManufacturers Part No.: 2-178294-2

View all in PCB Headers

Technical Documents

Specifications

Brand

TE Connectivity

Product Type

PCB Header

Series

Dynamic 3000

Pitch

3.81mm

Current

12A

Number of Contacts

Housing Material

Glass Filled Polyester

Number of Rows

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Copper Alloy

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Row Pitch

3.81mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

Voltage

250V

Product Details

Dynamic D-3100 Series Headers

The TE Connectivity Dynamic Range D-3100 Series Headers have a Tin plated Retention Leg for increased stability. The PCB solder tails of the D-3100 Series Headers are Tin plated and the contact Tabs are Gold plated. The recommended PCB thickness for these D-3100 Series Headers is 1.0 to 1.6 mm.

Tyco Dynamic 3000 Series

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in PCB Headers

Stock information temporarily unavailable.

26.70 MOP

26.69 MOP Each (ex VAT)

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 4 Contact(s), 3.81 mm Pitch, 1 Row, Shrouded

Select packaging type

Standard

26.70 MOP

26.69 MOP Each (ex VAT)

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 4 Contact(s), 3.81 mm Pitch, 1 Row, Shrouded

Stock information temporarily unavailable.

Select packaging type

Standard

quantity	Unit price
1 - 24	26.69 MOP
25 - 99	25.97 MOP
100 - 249	25.14 MOP
250+	24.53 MOP
