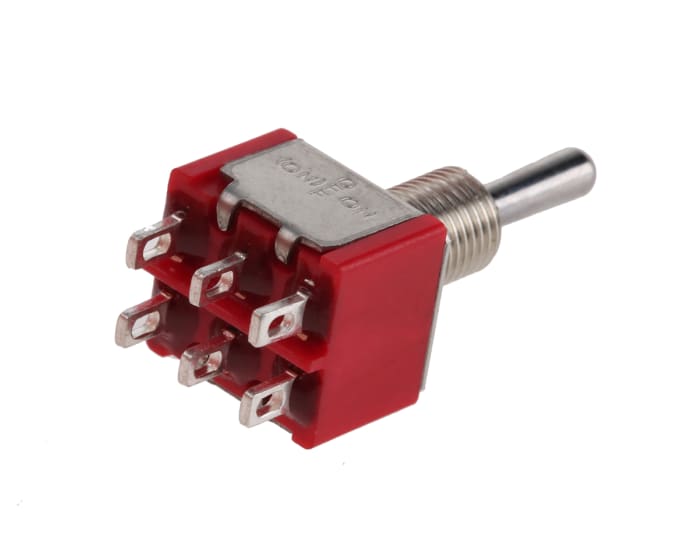

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 28 V dc, 240 V ac

RS Stock No.: 710-9814Brand: TE ConnectivityManufacturers Part No.: 2-1825139-4
brand-logo
View all in Toggle Switches

Technical Document

Specifications

Brand

TE Connectivity

Product Type

Toggle Switch

Contact Configuration

DPDT

Switch Operation

On-Off-On

Switch Contact Current

5A

Mount Type

Panel

Terminal Type

Solder

IP Rating

IP55

Illuminated

No

Panel Cutout Size

6.35 mm

Actuator Length

10.41mm

Minimum Operating Temperature

-30°C

Contact DC Voltage

28V dc

Contact AC Voltage

240V ac

Actuator Material

Phenolic

Maximum Operating Temperature

85°C

Switch Configuration

On-On

Length

0.50in

Standards/Approvals

EN, RoHS, IEC, UL, cULus

Width

0.45in

Mechanical Life

6000Cycles

Product details

Panel Mount Toggle Switches - Gemini A Series

Break before make contact timing
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
