Technical Documents
Specifications
Brand
TE ConnectivityProduct Type
Automotive Connector
Number of Contacts
4
Sub Type
Automotive Connector Housing
Termination Type
Crimp
Gender
Female
Number of Rows
1
Mount Type
Cable
Series
Junior Power Timer
Cord Included
No
Colour
Grey
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
150°C
Height
19mm
Depth
37.75mm
Standards/Approvals
RoHS
Width
36.7mm
Housing Material
Fibreglass Reinforced Polybutylene Terephthalate
Product Details

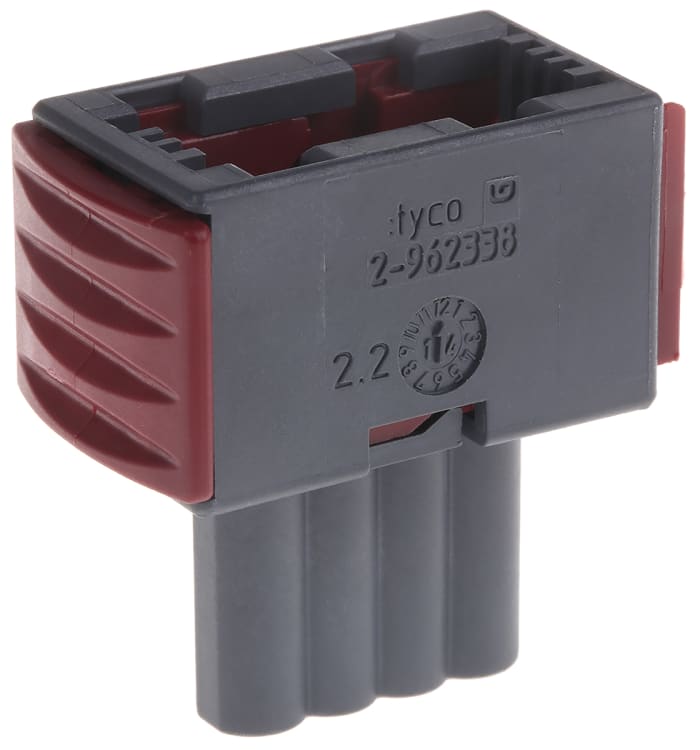

Junior Power Timer receptacle style connector housings for socket contacts. These Junior Power Timer receptacle housings have a 5mm centerline and an internal locking mechanism that ensures a robust and reliable connection during use.
For contacts see 718-1187. Optional wire Seals see 395-7599.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
29.00 MOP
28.96 MOP Each (Supplied in a Box) (ex VAT)
Production pack (Box)
1
29.00 MOP
28.96 MOP Each (Supplied in a Box) (ex VAT)
Stock information temporarily unavailable.
Production pack (Box)
1
| quantity | Unit price |
|---|---|
| 1 - 24 | 28.96 MOP |
| 25 - 74 | 27.93 MOP |
| 75 - 199 | 27.31 MOP |
| 200 - 399 | 26.79 MOP |
| 400+ | 25.45 MOP |
