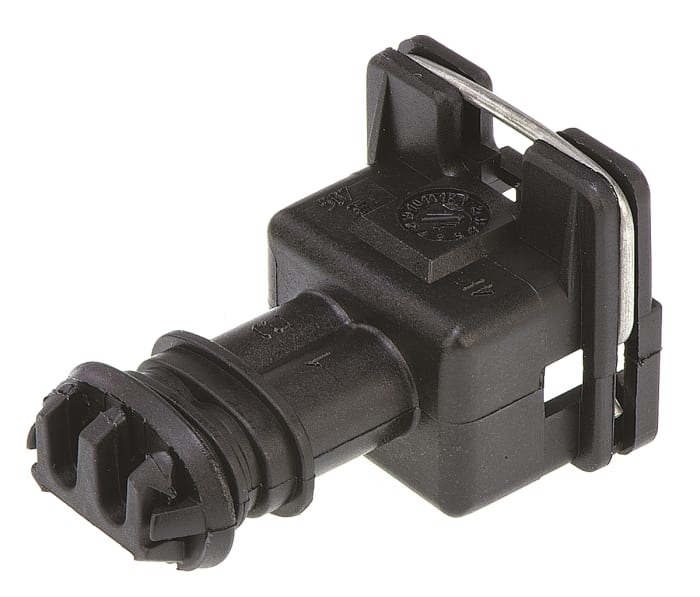

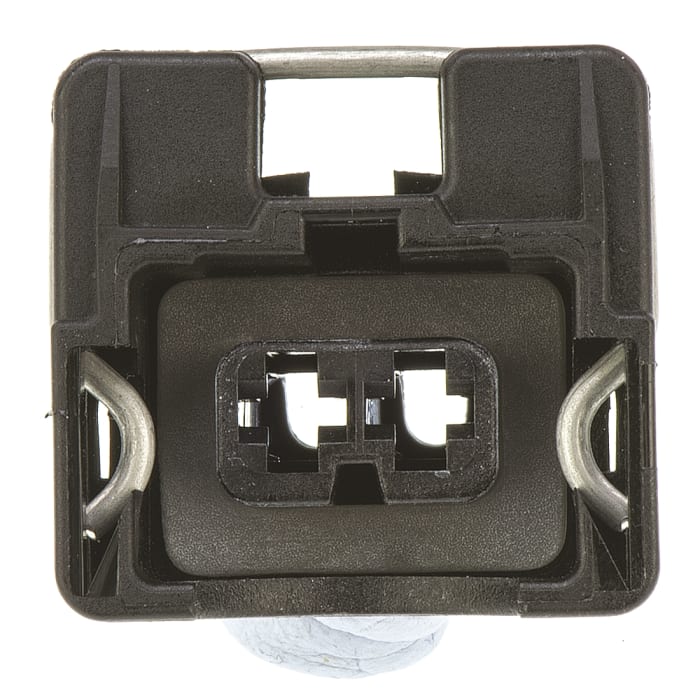

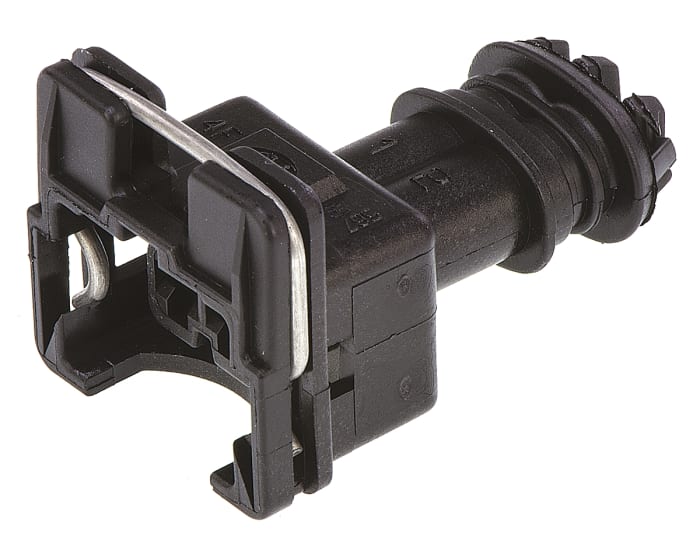

TE Connectivity, Junior Power Timer Automotive Connector Female Black Cable 2 Way Crimp Termination
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Automotive Connector
Number of Contacts
2
Sub Type
Automotive Connector Housing
Termination Type
Crimp
Gender
Female
Number of Rows
1
Mount Type
Cable
Series
Junior Power Timer
Cord Included
No
Colour
Black
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
125°C
Height
22mm
Depth
37.5mm
Standards/Approvals
RoHS
Width
23.8mm
Housing Material
Nylon
Product details
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
TE Connectivity Automotive Connectors
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
11.30 MOP
11.34 MOP Each (Supplied in a Bag) (ex VAT)
Production pack (Bag)
1
11.30 MOP
11.34 MOP Each (Supplied in a Bag) (ex VAT)
Stock information temporarily unavailable.
Production pack (Bag)
1
| quantity | Unit price |
|---|---|
| 1 - 299 | 11.34 MOP |
| 300 - 599 | 11.13 MOP |
| 600+ | 11.03 MOP |
