Technical Documents
Specifications
Brand
TE ConnectivityNumber of Contacts
3
Product Type
Pluggable Terminal Block
Pitch
5.08mm
Number of Rows
1
Current
15A
Minimum Wire Size mm²
0.05mm²
Housing Material
Glass Filled Polyamide
Connector Gender
Female
Maximum Wire Size mm²
3mm²
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
30AWG
Orientation
Right Angle
Wire Connection Method
Solder
Colour
Green
Voltage
300V
Standards/Approvals
No
Series
Buchanan
Product Details

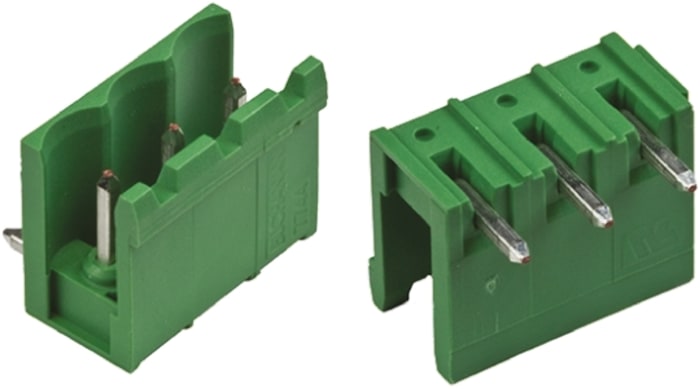

TERMI-BLOK series open end vertical and right angle PCB mount Terminal Block headers with a 5.08mm centreline and interlock feature. These 5.08mm PCB Terminal Block headers are MADE from green polyamide 6.6 GF and have tin plated phosphor bronze contacts.
UL 94V-0
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
67.60 MOP
13.52 MOP Each (Supplied in a Bag) (ex VAT)
Production pack (Bag)
5
67.60 MOP
13.52 MOP Each (Supplied in a Bag) (ex VAT)
Stock information temporarily unavailable.
Production pack (Bag)
5
| quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 45 | 13.52 MOP | 67.60 MOP |
| 50 - 95 | 13.232 MOP | 66.16 MOP |
| 100+ | 12.984 MOP | 64.92 MOP |
