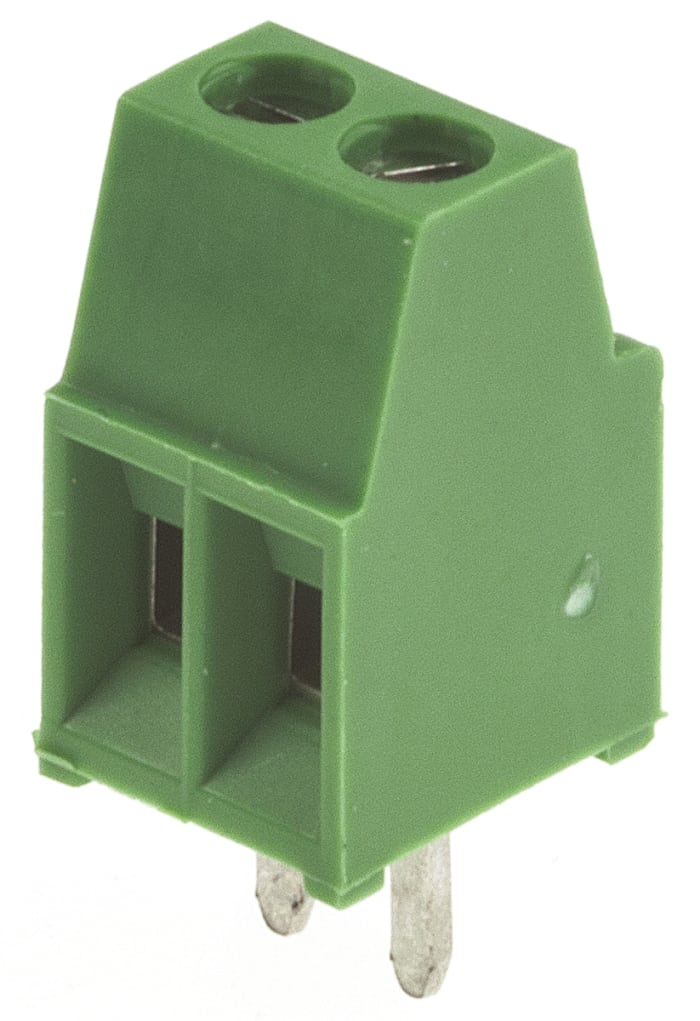

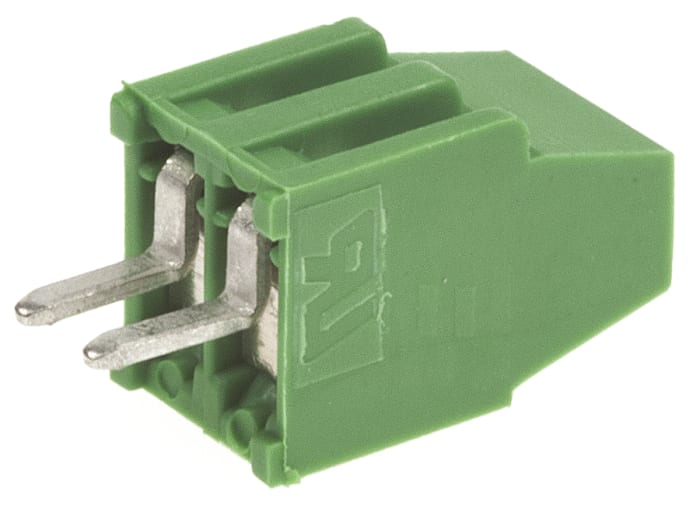

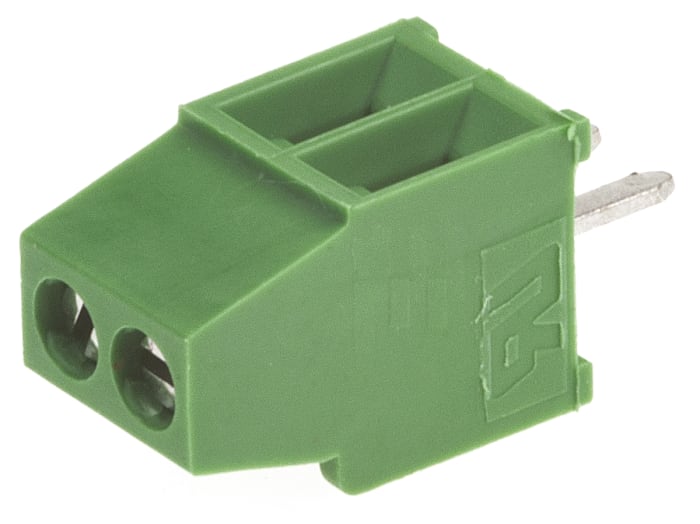

TE Connectivity Buchanan Series PCB Terminal Block, 2-Contact, 2.54 mm Pitch, 1 Row, 282834-2

RS Stock No.: 710-0104Brand: TE ConnectivityManufacturers Part No.: 282834-2
brand-logo
View all in Pluggable Terminal Blocks

Technical Document

Specifications

Brand

TE Connectivity

Number of Contacts

2

Product Type

PCB Terminal Block

Pitch

2.54mm

Number of Rows

1

Current

10A

Minimum Wire Size mm²

0.05mm²

Housing Material

Polyamide

Connector Gender

Male

Maximum Wire Size mm²

1.3mm²

Minimum Wire Size AWG

16AWG

Maximum Wire Size AWG

30AWG

Orientation

Straight

Colour

Green

Voltage

150V ac

Depth

10mm

Length

5.54mm

Standards/Approvals

No

Width

6.5mm

Series

Buchanan

Product details

TE Connectivity TERMI-BLOK 2.54mm PCB Terminal Blocks with Side Wire entry

TERMI-BLOK 2.54mm PCB terminal block connectors with a side wire entry and green polyamide 6.6 GF housings. These PCB screw terminal block connectors have M1.6 nickel plated brass screw terminals, tin plated contacts and accept a wire size range of 0.05 to 1.40mm2 (30-16 AWG).

Wire size range - 16-30 AWG
Rising cage clamp design

Standards

UL 94V-0

TE Connectivity 2.54mm TERMI-BLOK PCB Terminal Block Connectors
