Technical Documents
Specifications
Brand
TE ConnectivityGender
Female
Product Type
Crimp Terminal
For Use With
Junior Power Timer Connector Housing
Current
30A
Series
Junior Power Timer
Minimum Wire Size mm²
1mm²
Minimum Wire Size AWG
13AWG
Contact Plating
Tin
Maximum Wire Size mm²
2.5mm²
Maximum Wire Size AWG
17AWG
Contact Material
Bronze
Maximum Contact Resistance
2mΩ
Minimum Operating Temperature
-40°C
Termination Type
Crimp
Maximum Operating Temperature
130°C
Length
19.6mm
Standards/Approvals
No
Product Details

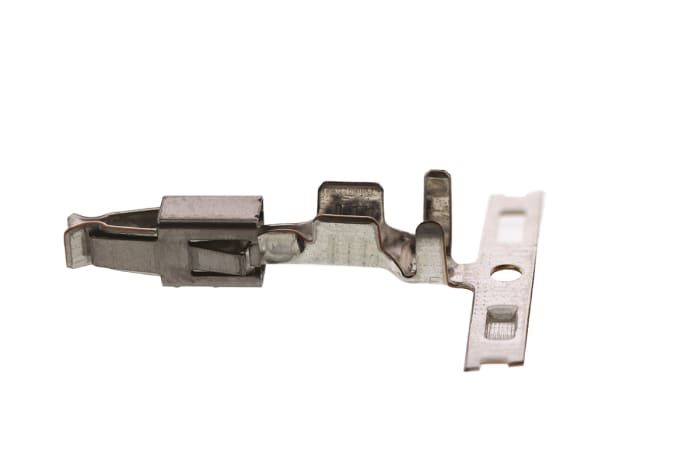

A range of tab and receptacle contacts suitable for use with JPT (Junior Power Timer) connectors.
For MCP connectors see 680-5980
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
100.00 MOP
1.999 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
50
100.00 MOP
1.999 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
50
| quantity | Unit price | Per Reel |
|---|---|---|
| 50 - 850 | 1.999 MOP | 99.96 MOP |
| 900 - 1700 | 1.958 MOP | 97.90 MOP |
| 1750+ | 1.908 MOP | 95.42 MOP |
