Technical Documents
Specifications
Brand
TE ConnectivityProduct Type

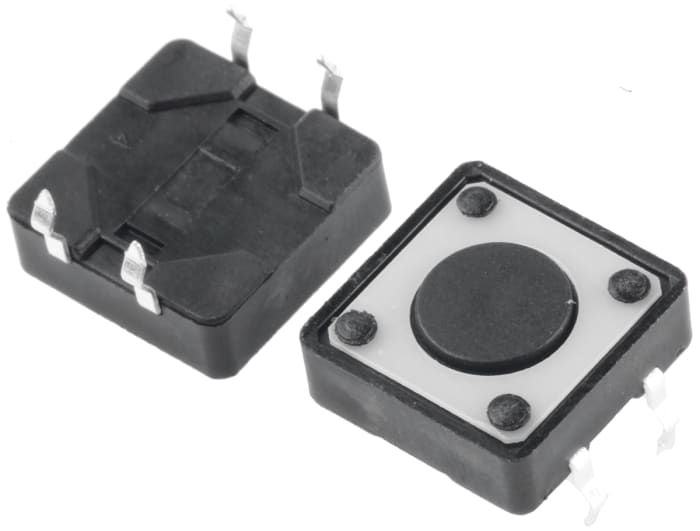

Tactile Switch
Contact Configuration
SPST
Terminal Type
Solder
Switch Operation
Momentary
Actuator Colour
Black
Actuator Length
0.5mm
Length
12mm
Width
12mm
Illuminated
No
Minimum Operating Temperature
85°C
Contact DC Voltage
24V dc
Actuator Style
Button
Actuator Orientation
Top
Mount Type
Surface
Maximum Operating Temperature
-35°C
Switch Contact Current
50mA
Switch Configuration
SPST
Standards/Approvals
China RoHS 2, EU ELV, EU REACH, EU RoHS
Series
FSM
Height
4.3mm
Operating Force
1.6N
Mechanical Life
100000Operations
Product Details
Stock information temporarily unavailable.
9.50 MOP
1.896 MOP Each (Supplied in a Bag) (ex VAT)
Production pack (Bag)
5
9.50 MOP
1.896 MOP Each (Supplied in a Bag) (ex VAT)
Stock information temporarily unavailable.
Production pack (Bag)
5
| quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 120 | 1.896 MOP | 9.48 MOP |
| 125+ | 1.834 MOP | 9.17 MOP |
