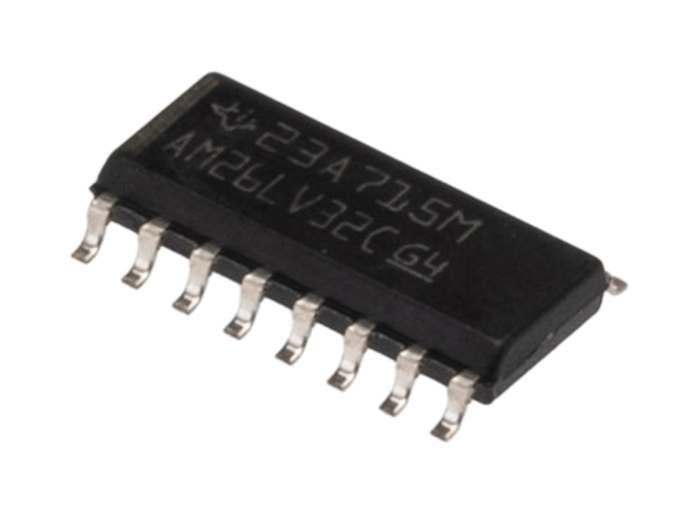

Texas Instruments AM26LV32CD Line Receiver, 3 State, 16-Pin SOIC
Technical Document
Specifications
Brand
Texas InstrumentsLogic Family
BiCMOS
Product Type
Line Receiver
Logic Function
Line Receiver
IC Type
Quad Line Receiver
Input Type
Differential
Output Type
3 State
Mount Type
Surface
Package Type
SOIC
Minimum Supply Voltage
3V
Pin Count
16
Maximum Supply Voltage
3.6V
Maximum High Level Output Current
-5mA
Maximum Low Level Output Current
5mA
Maximum Propagation Delay Time @ CL
20ns
Minimum Operating Temperature
0°C
Maximum Operating Temperature
70°C
Width
6.2 mm
Height
1.75mm
Length
10mm
Standards/Approvals
No
Series
AM26LV32
Supply Current
17mA
Automotive Standard
No
Product details
RS-422 Line Transmitters, Texas Instruments
RS-422 Line Drivers and Receivers
Stock information temporarily unavailable.
71.50 MOP
14.303 MOP Each (In a Pack of 5) (ex VAT)
5
71.50 MOP
14.303 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 5 | 14.303 MOP | 71.52 MOP |
| 10 - 15 | 13.953 MOP | 69.76 MOP |
| 20+ | 13.747 MOP | 68.73 MOP |
