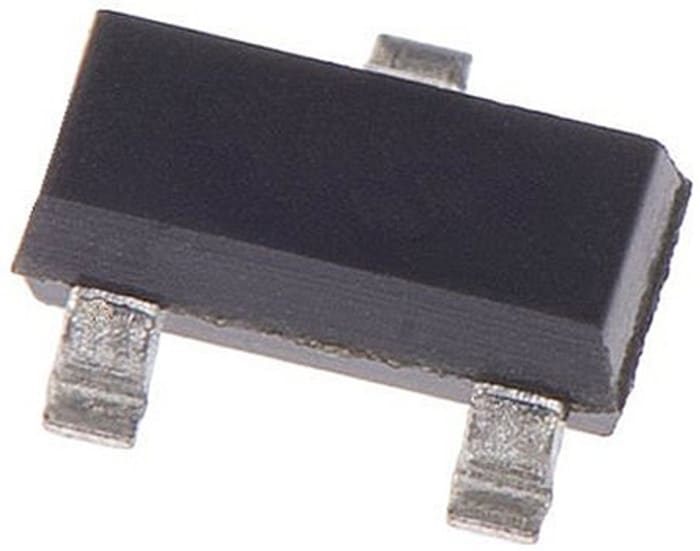

Texas Instruments Fixed Shunt Voltage Reference ±0.5 % 3-Pin SOT-23
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
Voltage Reference
Reference Voltage
1.23V
Package Type
SOT-23
Reference Type
Fixed
Output Voltage
1.225 V
Initial Accuracy
±0.5 %
Temperature Coefficient
20 ppm/°C
Mount Type
Surface
Topology
Shunt
Output Current
12mA
Minimum Operating Temperature
-40°C
Pin Count
3
Maximum Operating Temperature
85°C
Length
2.92mm
Width
1.3 mm
Height
1mm
Standards/Approvals
No
Series
LM4041
Load Regulation
6 mV
Automotive Standard
No
Output Type
Fixed
Product details
Shunt Voltage Reference, Fixed, 1.2V to 2.3V
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
