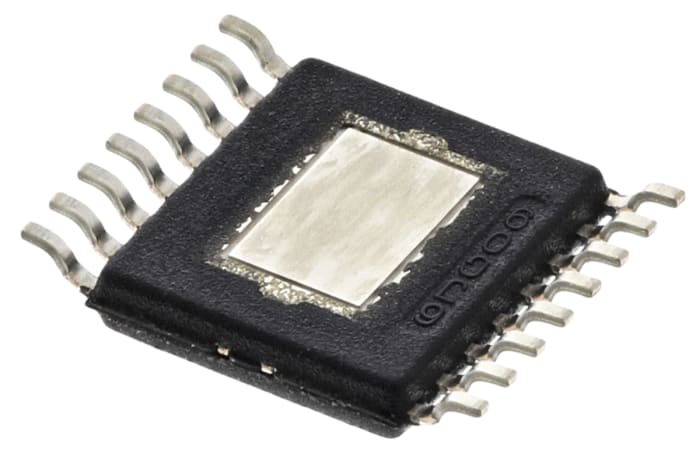

Texas Instruments Switching Regulator, Surface, 28V Output Voltage, 2 A Output Current, 1 Outputs

Name: Texas Instruments Switching Regulator, Surface, 28V Output Voltage, 2 A Output Current, 1 Outputs
Brand: Texas Instruments
SKU: 8239293P
Availability: LimitedAvailability

RS Stock No.: 823-9293PBrand: Texas InstrumentsManufacturers Part No.: LM46002PWPT

View all in Switching Regulators

Technical Documents

Specifications

Brand

Texas Instruments

Product Type

Switching Regulator

Output Voltage 1

28V

Output Current

Mount Type

Surface

Number of Outputs

Ripple and Noise

33mV

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Number of Pins

Series

LM4360

Package Type

HTSSOP

Depth

1.2mm

Length

5.1mm

Standards/Approvals

RoHS, ANSI, JEDEC, REACH, ESDA

Width

4.5mm

Maximum Input Voltage

60V

Minimum Input Voltage

3.5V

Product Details

SIMPLE SWITCHER® Step-Down Regulators, LM4360x & LM4600x Series

Synchronous step-down (buck) switching regulators from Texas Instruments' LM4360x and LM4600x range of SIMPLE SWITCHER® devices

Input voltage range: 3.5V to 36V (LM4360x)
Input voltage range: 3.5V to 60V (LM46002)
Microamperes Quiescent Current in Regulation
High Efficiency at Light Load (DCM and PFM)
Integrated Synchronous Rectification
Adjustable Frequency Range

Standards

EN55022/CISPR 22 EMI Standards

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Switching Regulators

Stock information temporarily unavailable.

92.50 MOP

46.269 MOP Each (Supplied on a Reel) (ex VAT)

Texas Instruments Switching Regulator, Surface, 28V Output Voltage, 2 A Output Current, 1 Outputs

Select packaging type

Production pack (Reel)

92.50 MOP

46.269 MOP Each (Supplied on a Reel) (ex VAT)

Texas Instruments Switching Regulator, Surface, 28V Output Voltage, 2 A Output Current, 1 Outputs

Stock information temporarily unavailable.

Select packaging type

Production pack (Reel)

quantity	Unit price	Per Reel
2 - 62	46.269 MOP	92.54 MOP
64 - 124	45.033 MOP	90.07 MOP
126+	44.415 MOP	88.83 MOP
