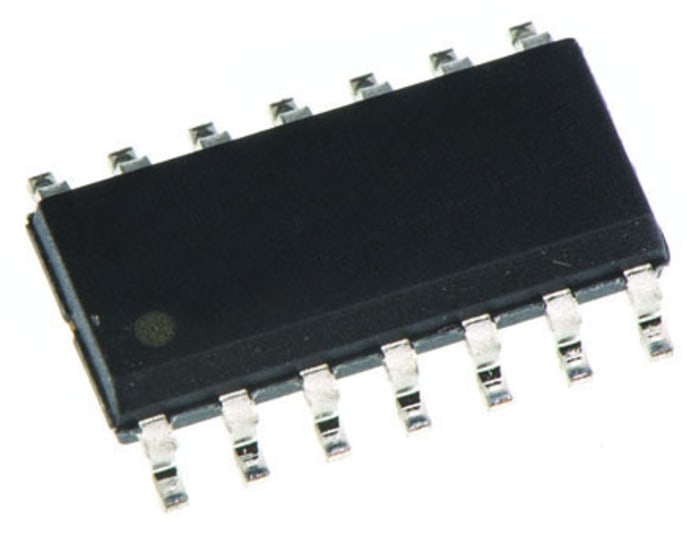

OPA1664AID Texas Instruments, Operational Amplifier, 22 MHz, 14-Pin 18 V SOIC
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
Operational Amplifier
Mount Type
Surface
Package Type
SOIC
Number of Channels
4
Pin Count
14
GBP - Gain Bandwidth Product
22MHz
Minimum Supply Voltage
3V
Maximum Supply Voltage
18V
Slew Rate
17V/μs
Input Bias Current
1200 nA
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
±1.5 mV
Maximum Operating Temperature
85°C
Standards/Approvals
RoHS
Width
4 mm
Series
OPA16
Height
1.5mm
Length
8.75mm
Automotive Standard
AEC-Q100
Output Current
30mA
Input Offset Current
±100 nA
Product details
Audio Op Amps, Texas Instruments
A range of operational amplifiers from Texas Instruments designed for high-fidelity audio applications. The devices typically feature low levels of distortion and noise together with high slew rates and wide bandwidth. They are frequently able to operate over a wide supply voltage range and include outputs capable of driving 600 Ω loads.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
138.90 MOP
27.782 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
138.90 MOP
27.782 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | 27.782 MOP | 138.91 MOP |
| 25+ | 26.669 MOP | 133.35 MOP |
