Technical Documents
Specifications
Brand
Texas InstrumentsProduct Type
Inverter
Logic Function
Inverter
Input Type
Schmitt Trigger
Output Type
CMOS
Number of Elements per Chip
6
Schmitt Trigger Input
Yes
Maximum Propagation Delay Time @ CL
190ns
Maximum High Level Output Current
-5.2mA
Maximum Low Level Output Current
5.2mA
Mount Type
Through Hole
Minimum Supply Voltage
2V
Maximum Supply Voltage
6V

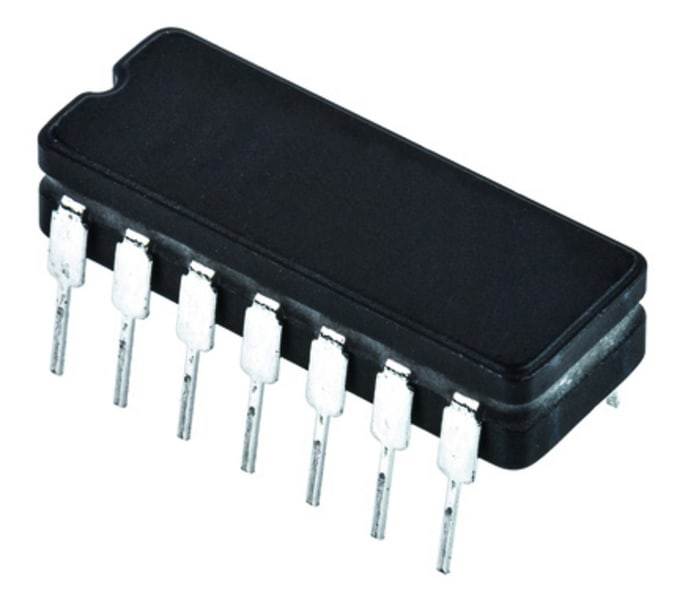

Package Type
CDIP
Minimum Operating Temperature
-55°C
Pin Count
14
Logic Family
HC
Maximum Operating Temperature
125°C
Length
19.94mm
Standards/Approvals
No
Series
SN54HC14
Height
3.56mm
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
1,135.90 MOP
227.184 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
5
1,135.90 MOP
227.184 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
5
