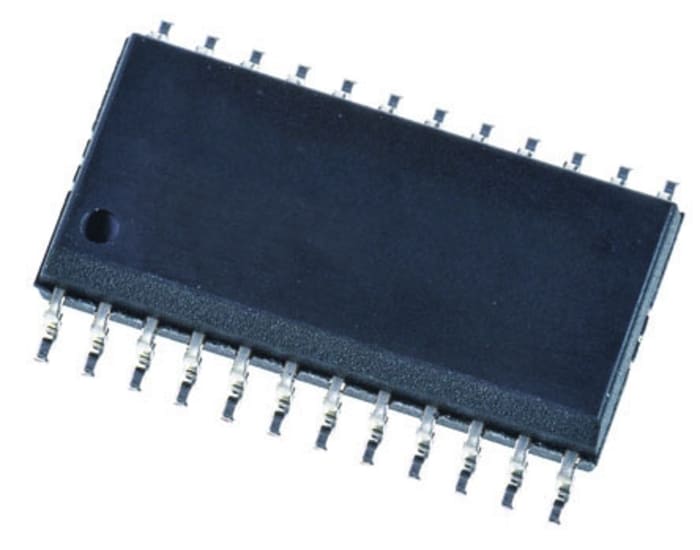

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 24-Pin SOIC

RS Stock No.: 663-0723PBrand: Texas InstrumentsManufacturers Part No.: SN64BCT25244DW
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

Texas Instruments

Logic Family

BCT

Product Type

Buffer & Line Driver

Logic Function

Buffer & Line Driver

Number of Channels

8

IC Type

Buffer & Line Driver IC

Input Type

Single Ended

Output Type

3 State

Polarity

Non-Inverting

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

4.5V

Pin Count

24

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

-80mA

Maximum Low Level Output Current

188mA

Maximum Propagation Delay Time @ CL

6ns

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

7.6 mm

Height

2.6mm

Length

15.6mm

Standards/Approvals

No

Series

SN64BCT25244

Supply Current

0.1mA

Automotive Standard

No

Product details

74BCT Family, Texas Instruments

BiCMOS TTL logic
Operating Voltage: 4.5 to 5.5
Compatibility: Input LVTTL/TTL, Output TTL

74BCT Family
