Technical Documents
Specifications
Brand
Texas InstrumentsLogic Family
SN75
Product Type
Line Transceiver
Logic Function
Line Transceiver
Number of Channels
1
IC Type
Line Transceiver IC
Input Type
Differential
Output Type
Differential
Polarity
Non-Inverting
Mount Type
Surface

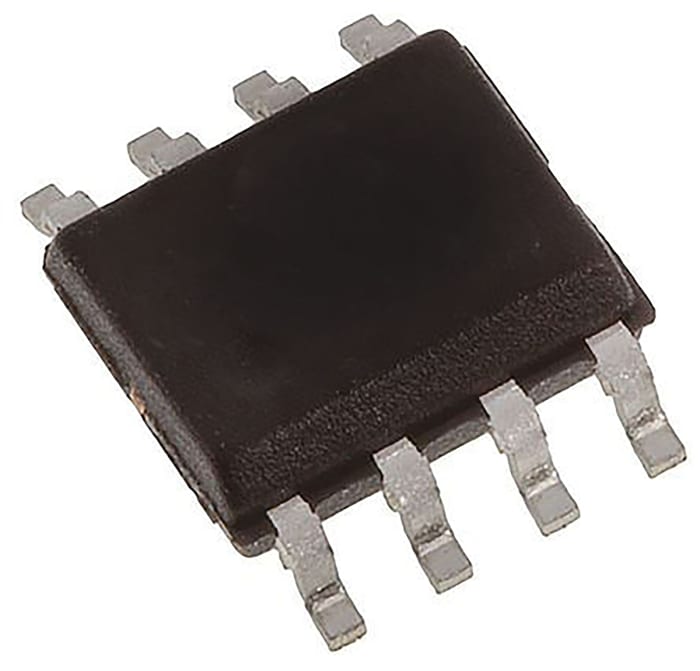

Package Type
SOIC
Minimum Supply Voltage
4.5V
Pin Count
8
Maximum High Level Output Current
-8mA
Maximum Supply Voltage
5.5V
Maximum Low Level Output Current
8mA
Maximum Propagation Delay Time @ CL
3.5ms
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Height
1.75mm
Length
5mm
Standards/Approvals
No
Width
3.98mm
Series
SN65HVD485E
Supply Current
2mA
Automotive Standard
No
Product Details
A range of High Speed RS-485 Line Drivers, Receivers and Transceivers from Texas Instruments with data rates of 10 Mbit/s or over.
Stock information temporarily unavailable.
136.30 MOP
13.634 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
10
136.30 MOP
13.634 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
10
| quantity | Unit price | Per Reel |
|---|---|---|
| 10 - 620 | 13.634 MOP | 136.34 MOP |
| 630+ | 13.232 MOP | 132.32 MOP |
